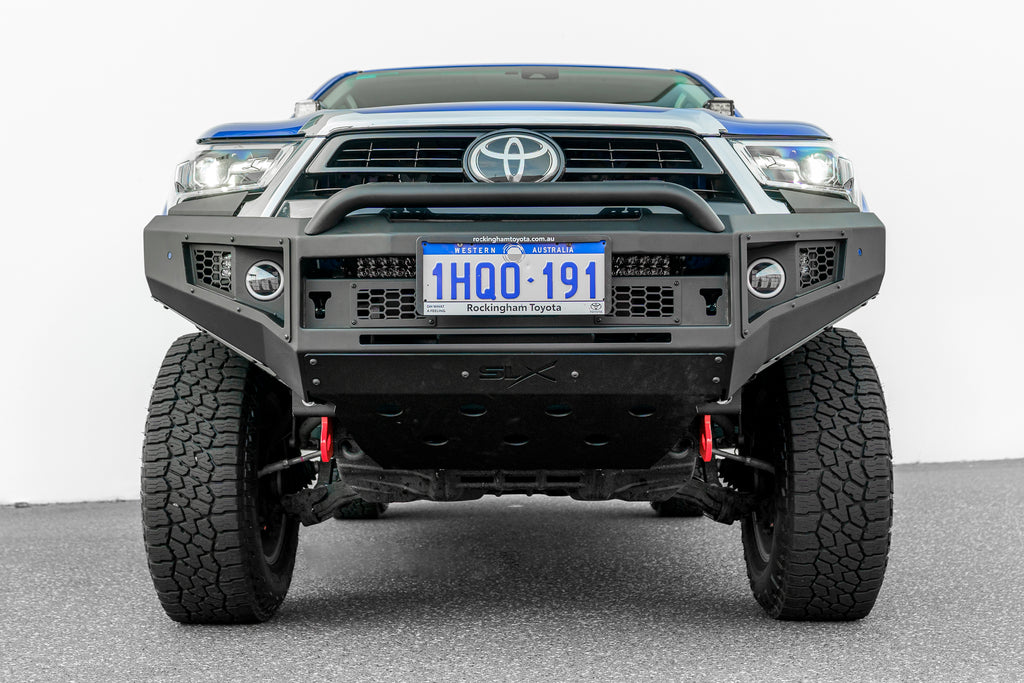

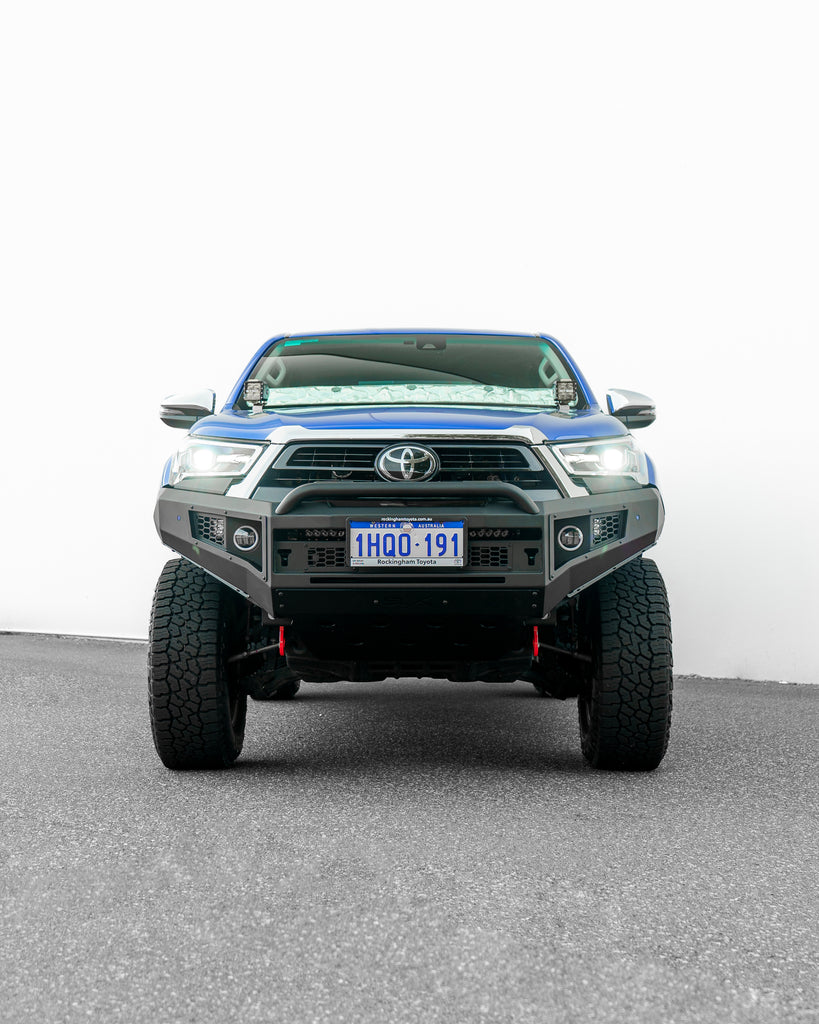

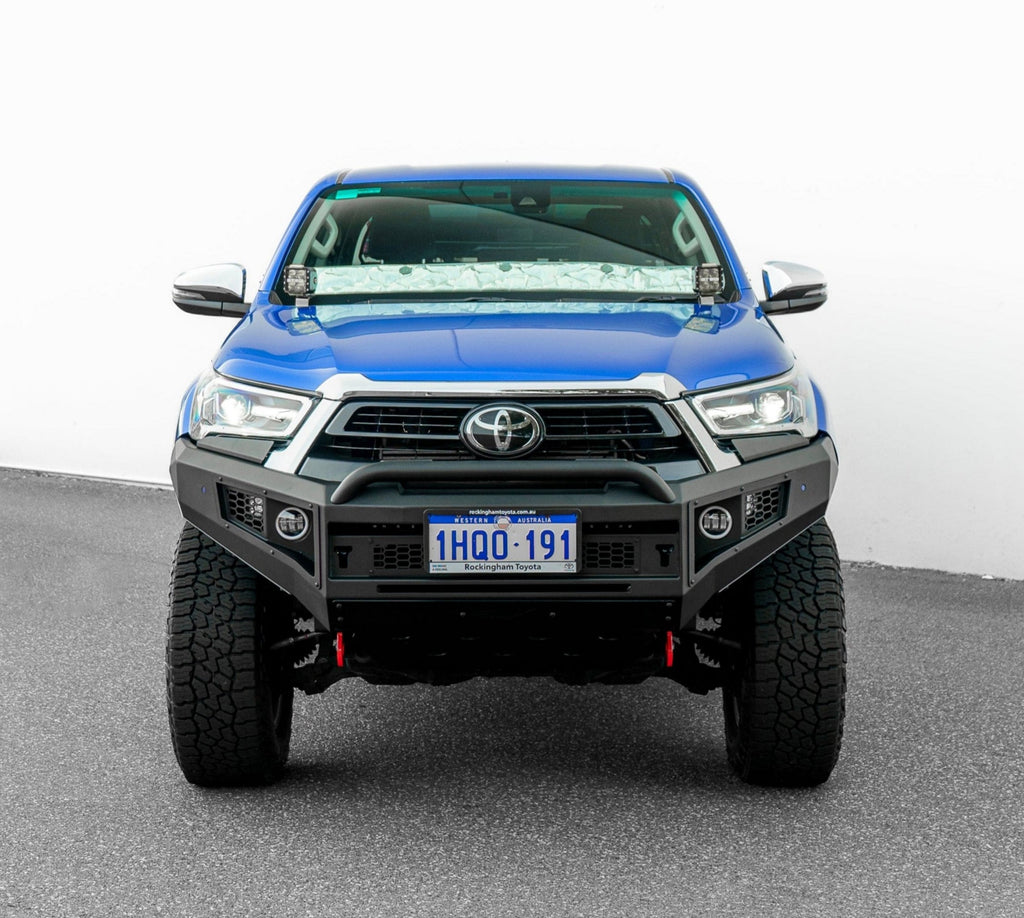

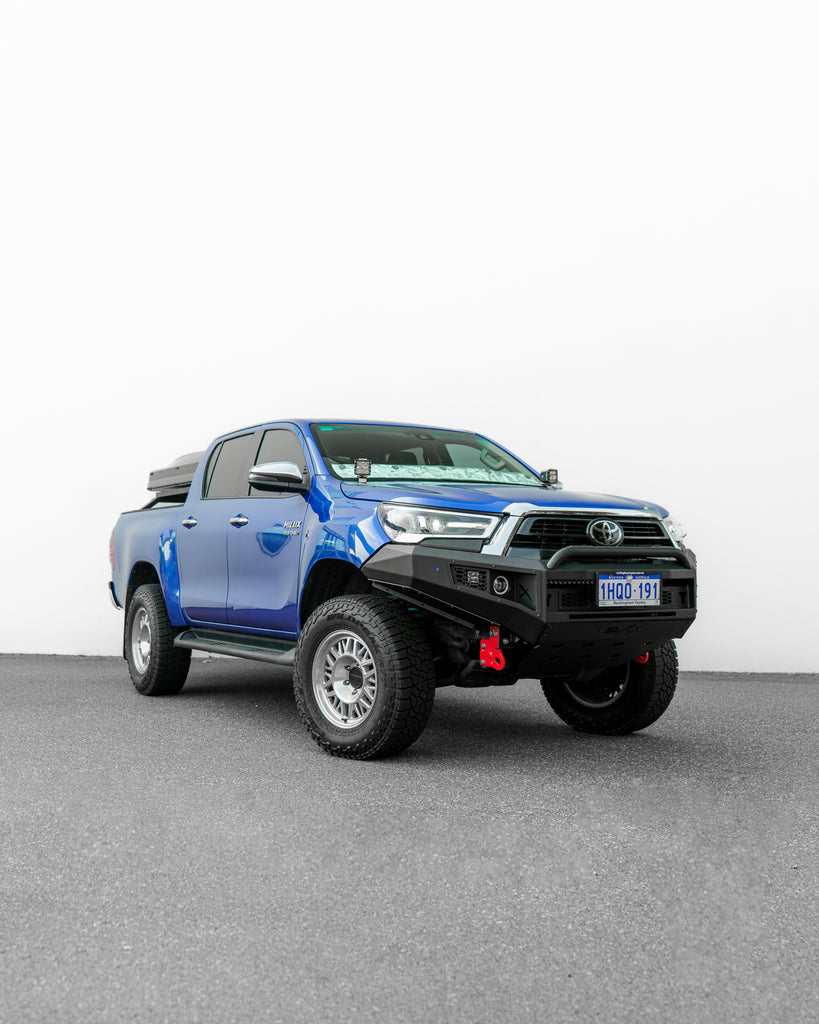

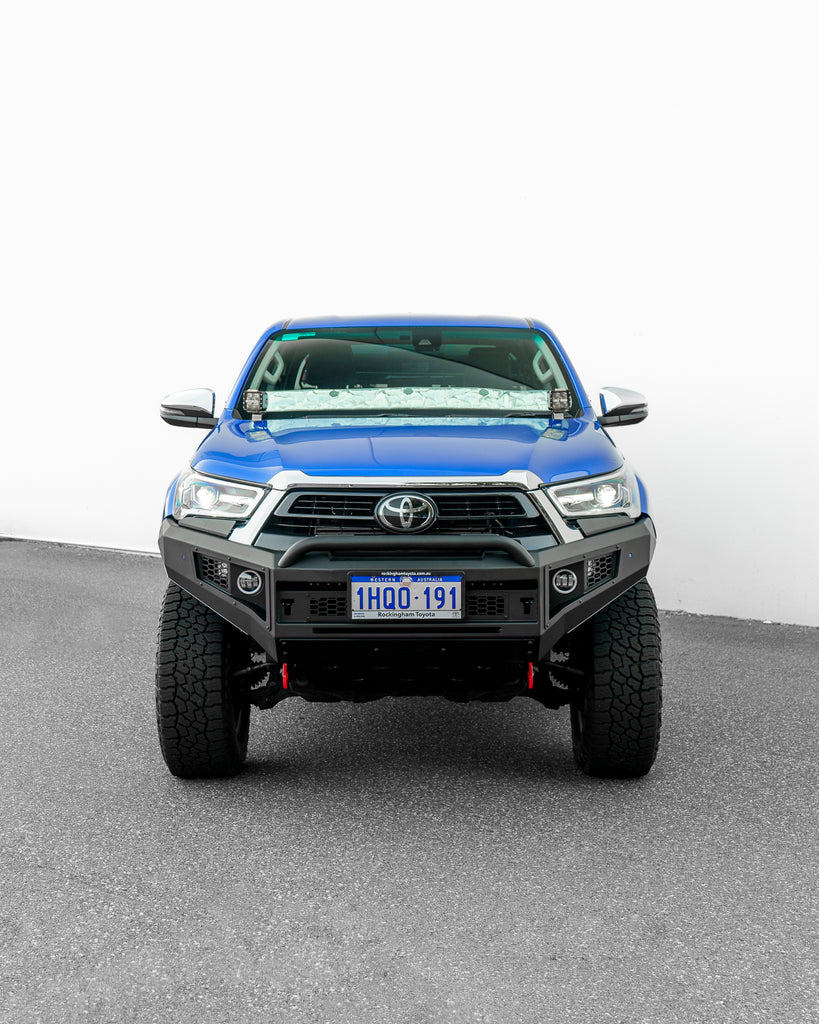

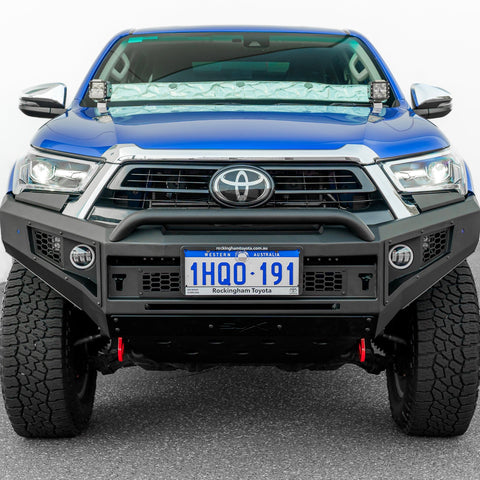

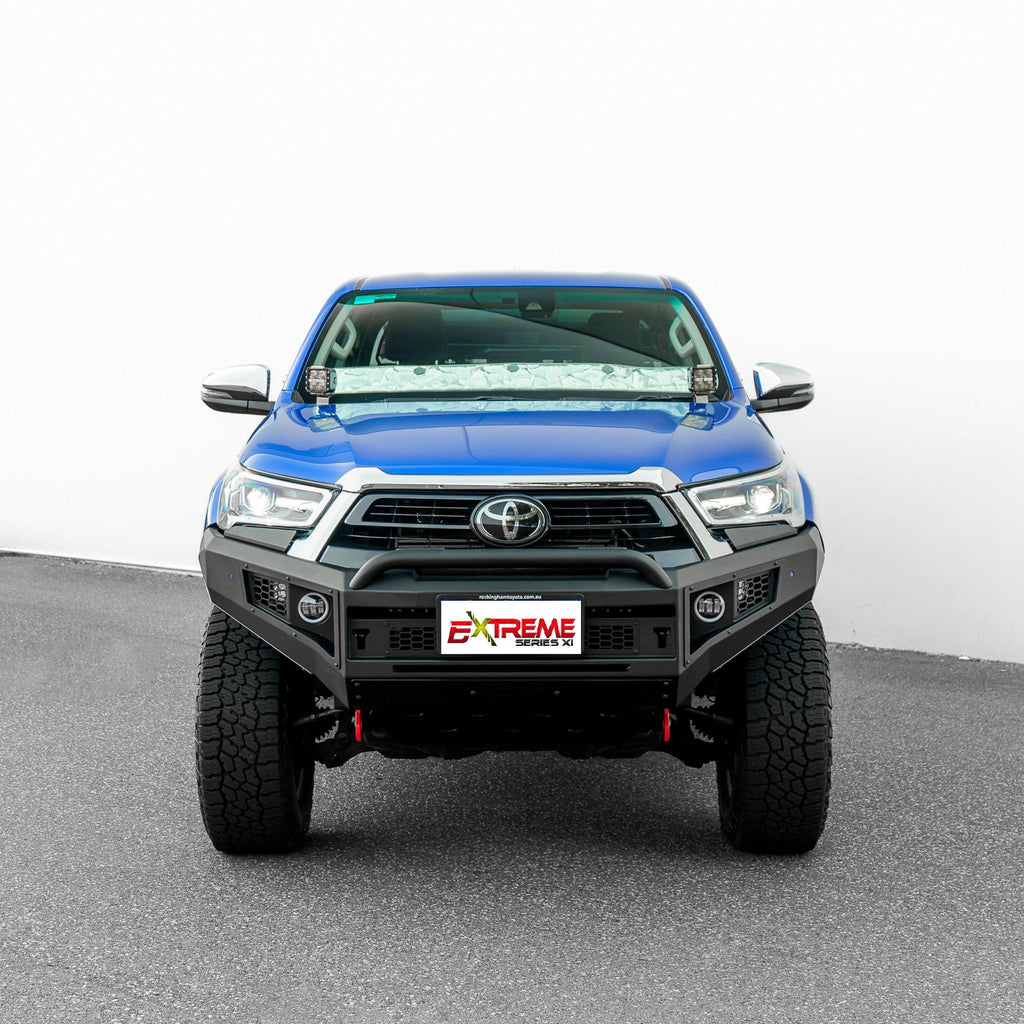

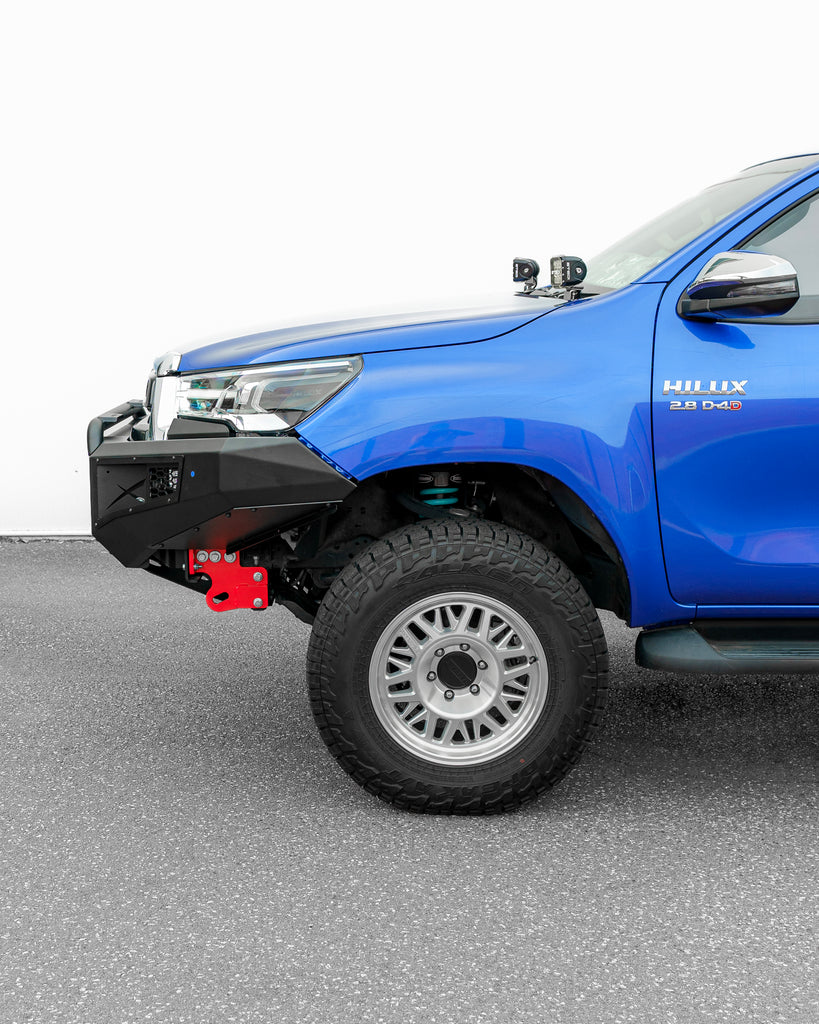

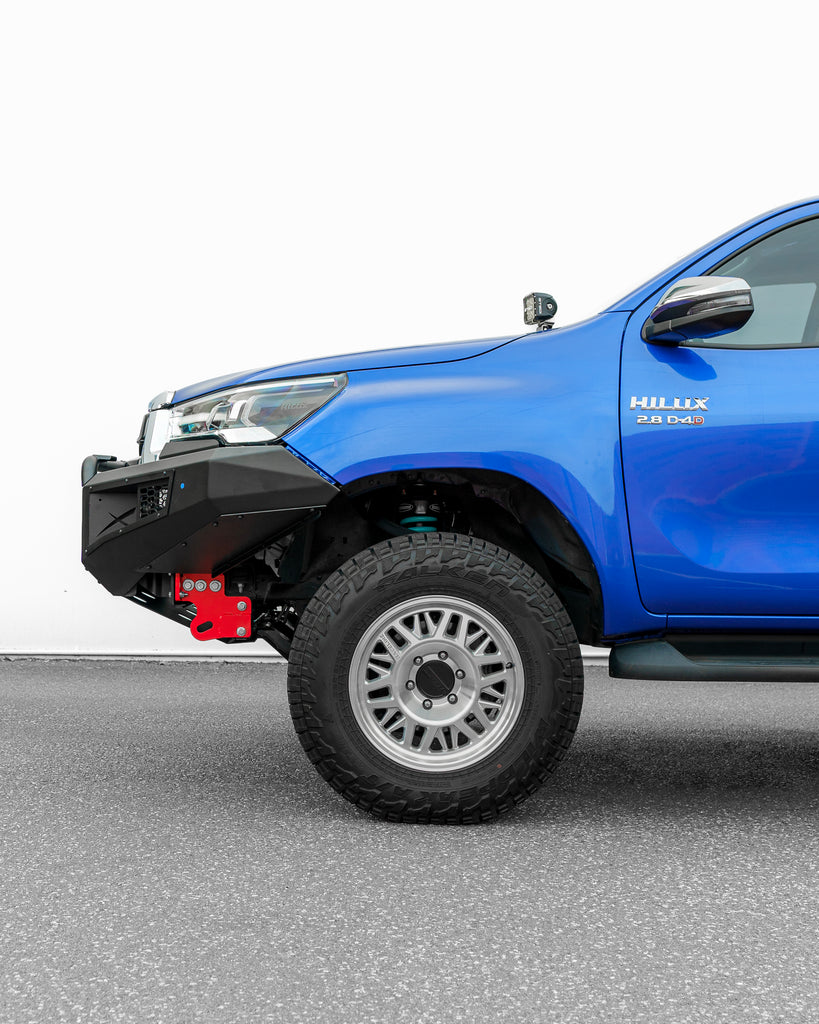

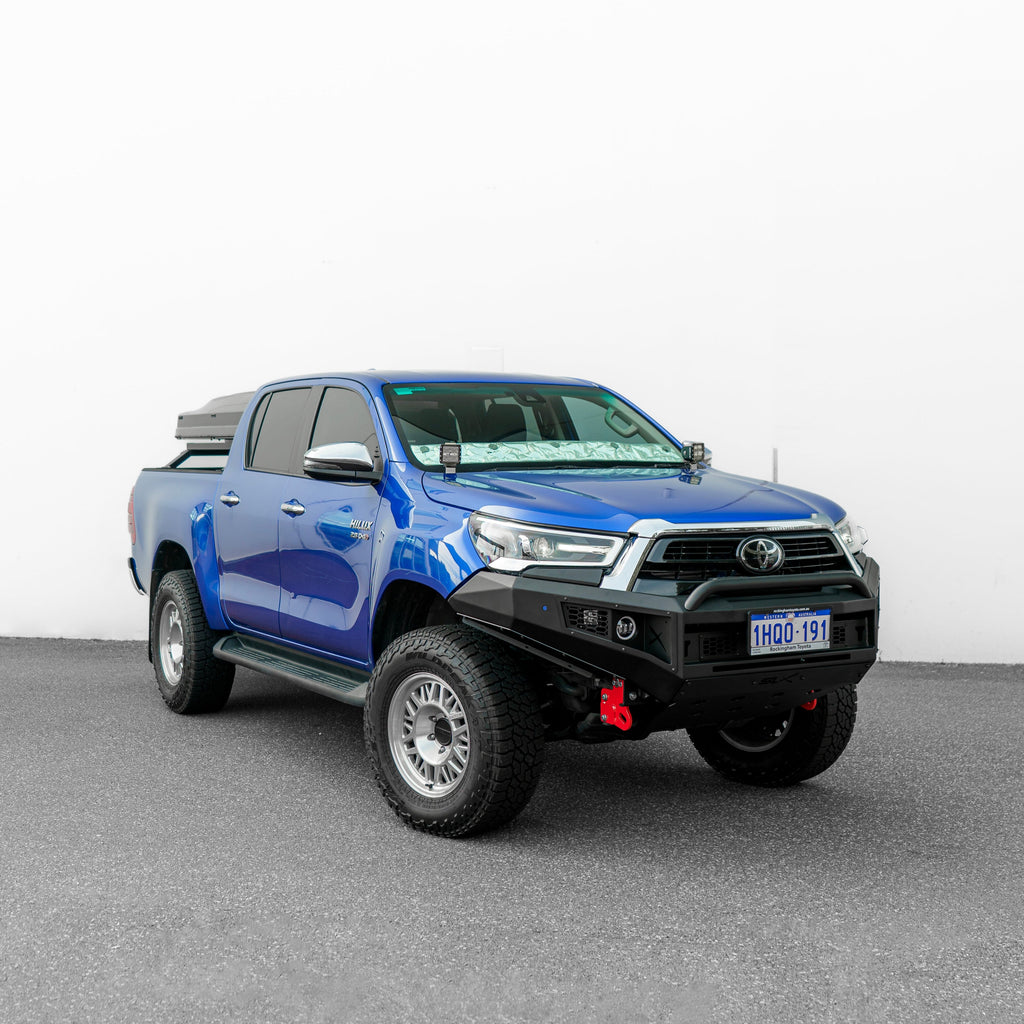

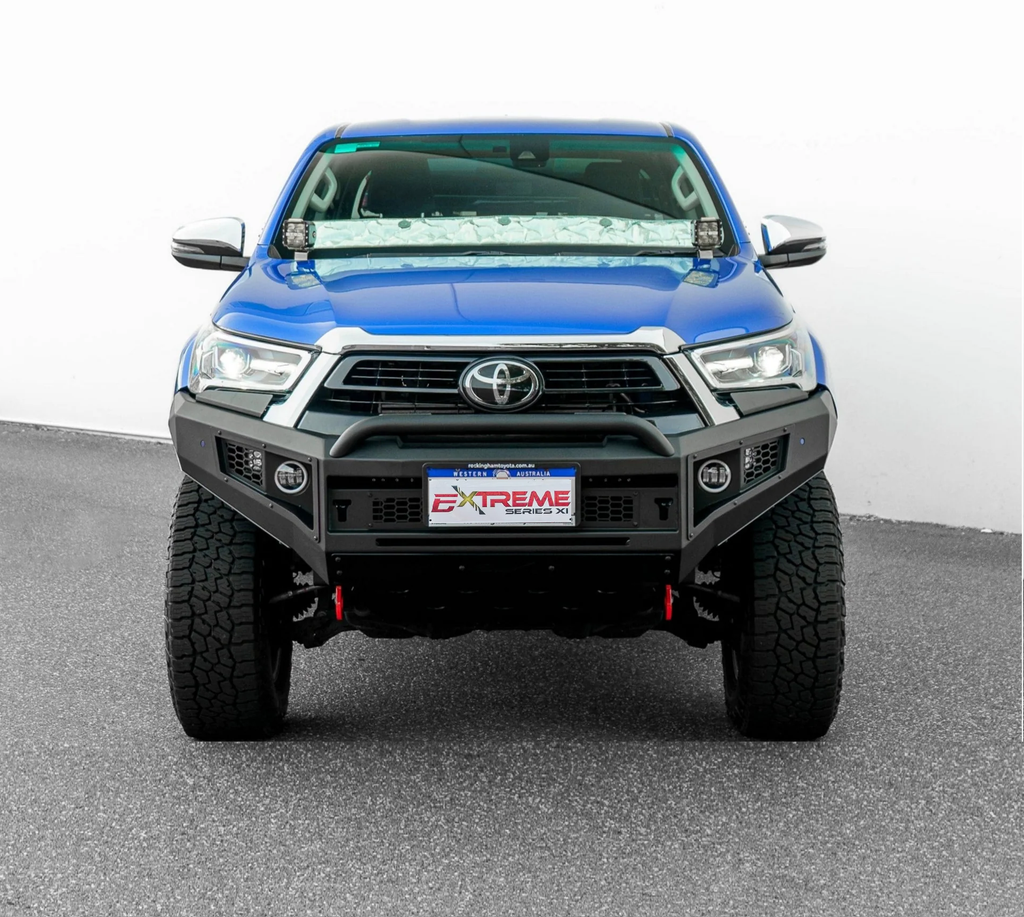

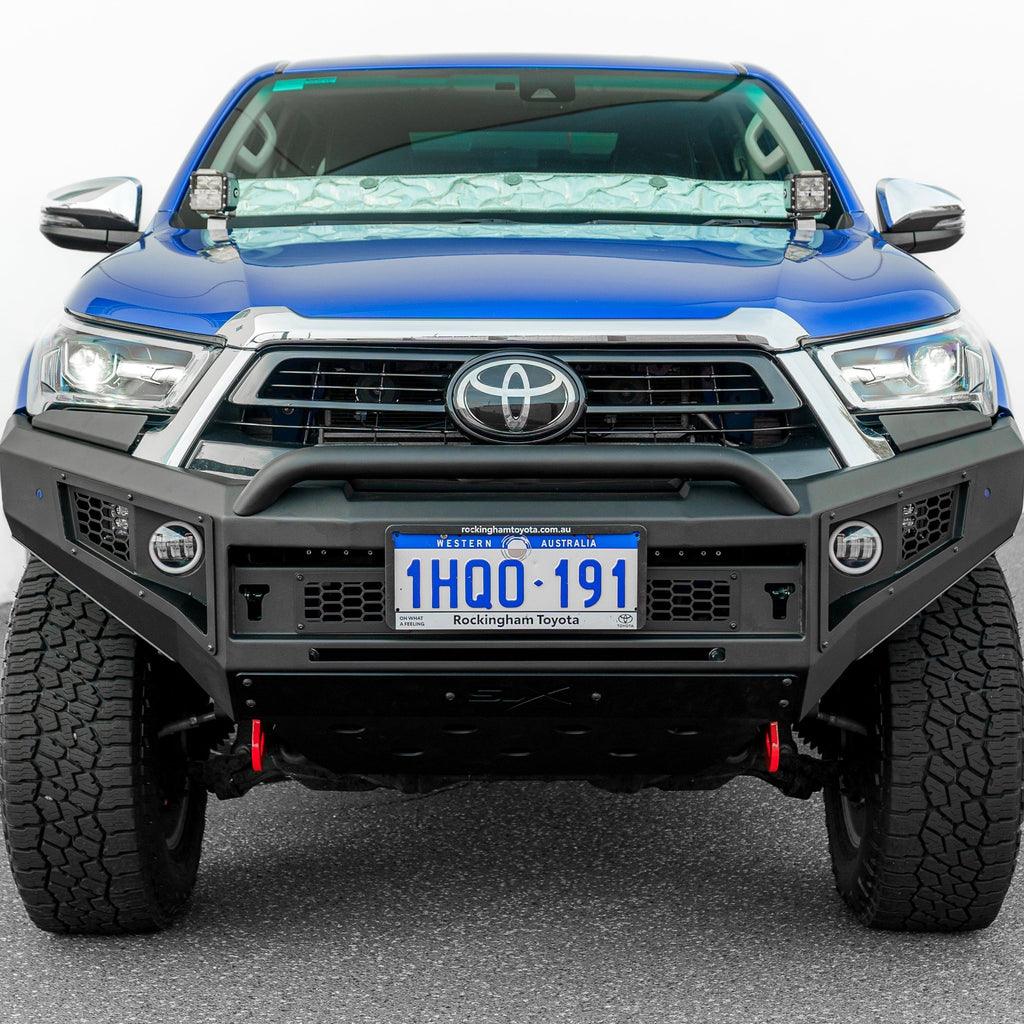

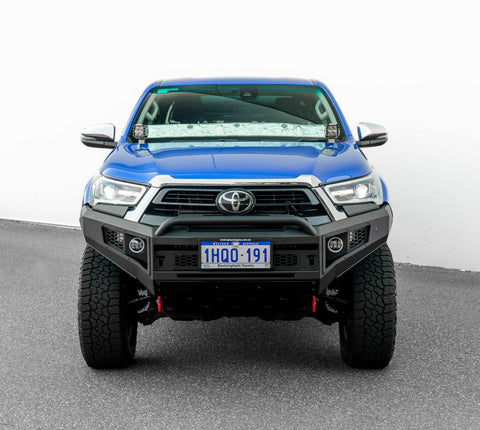

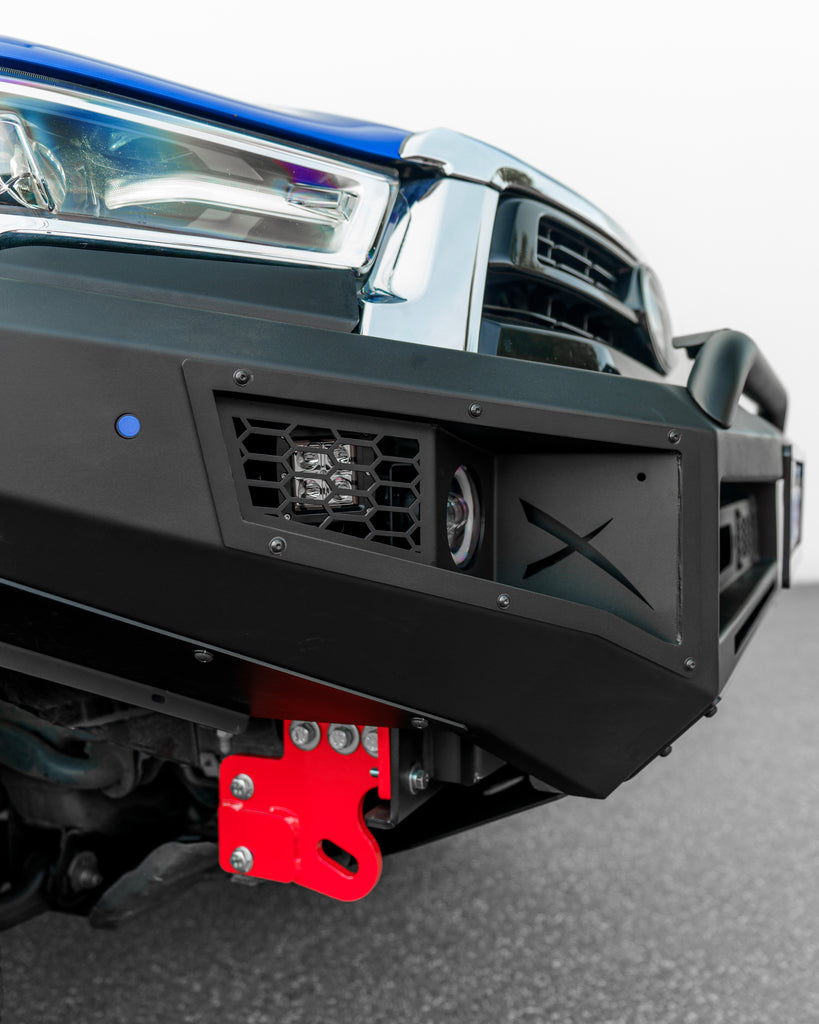

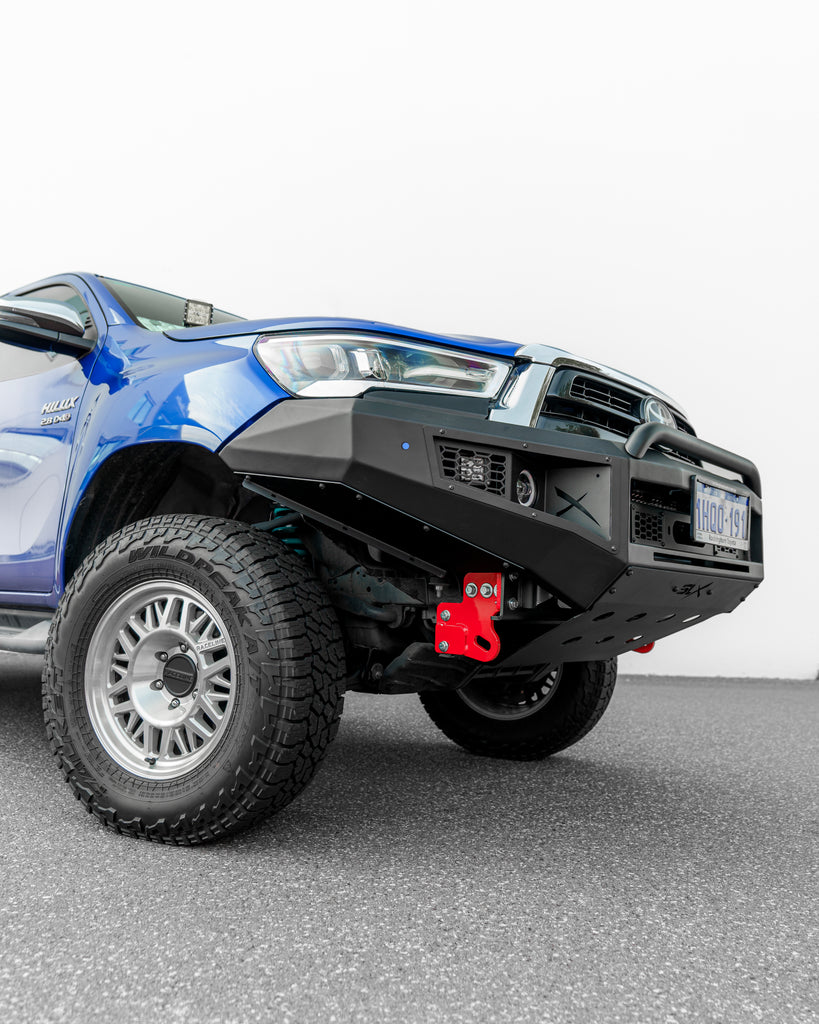

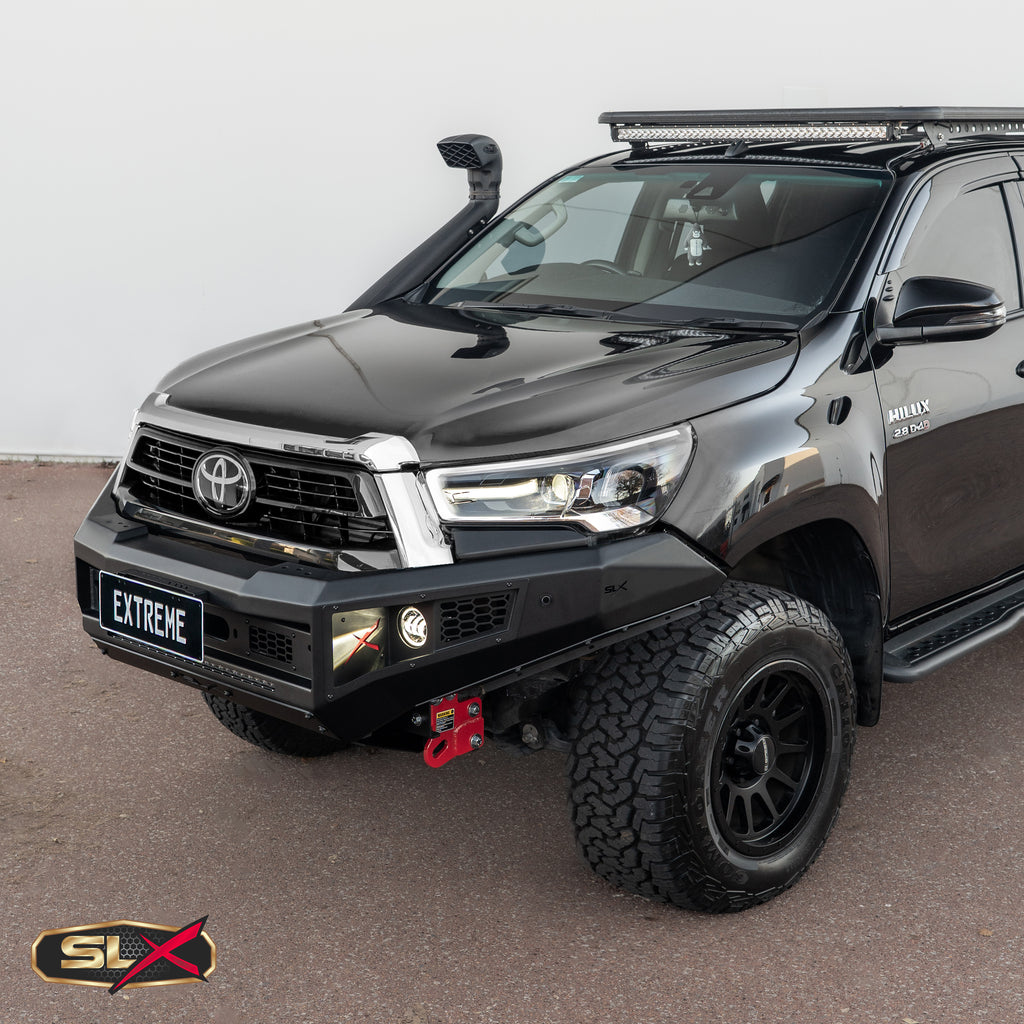

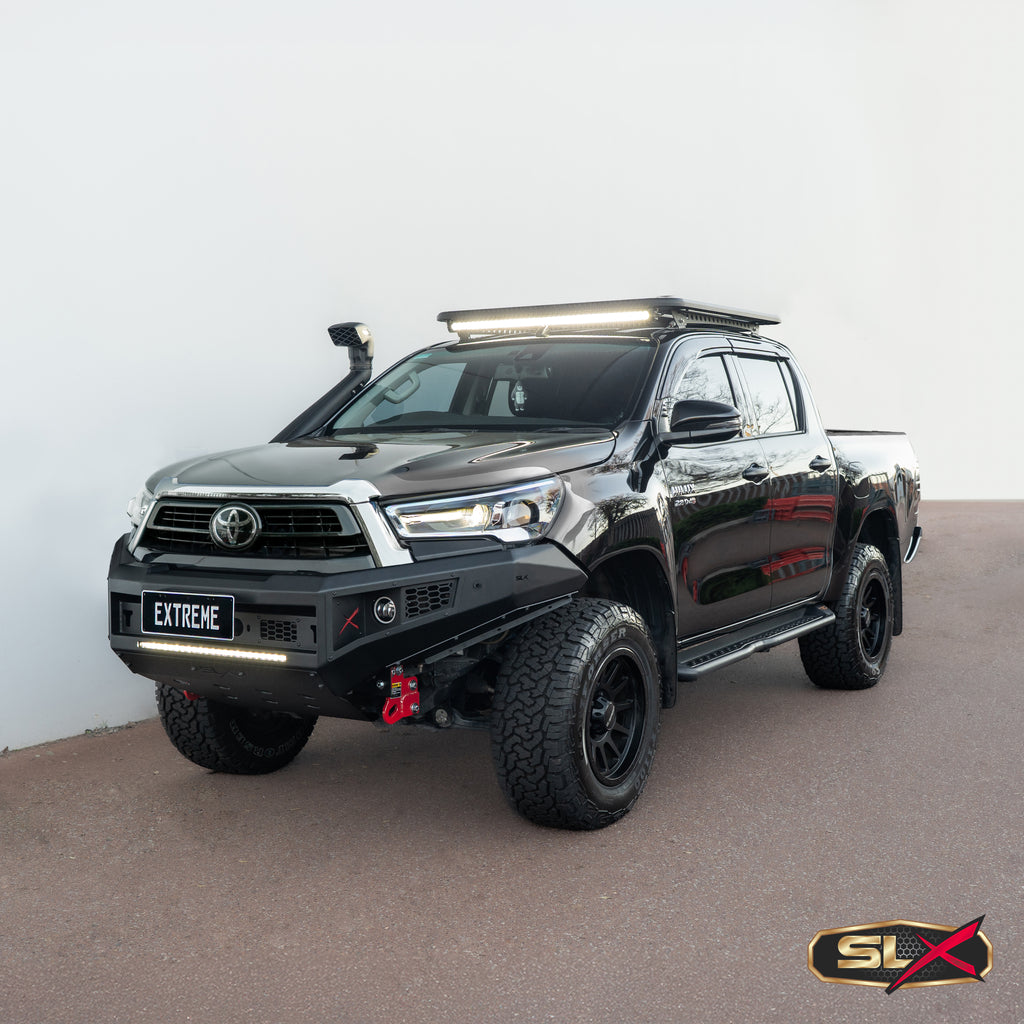

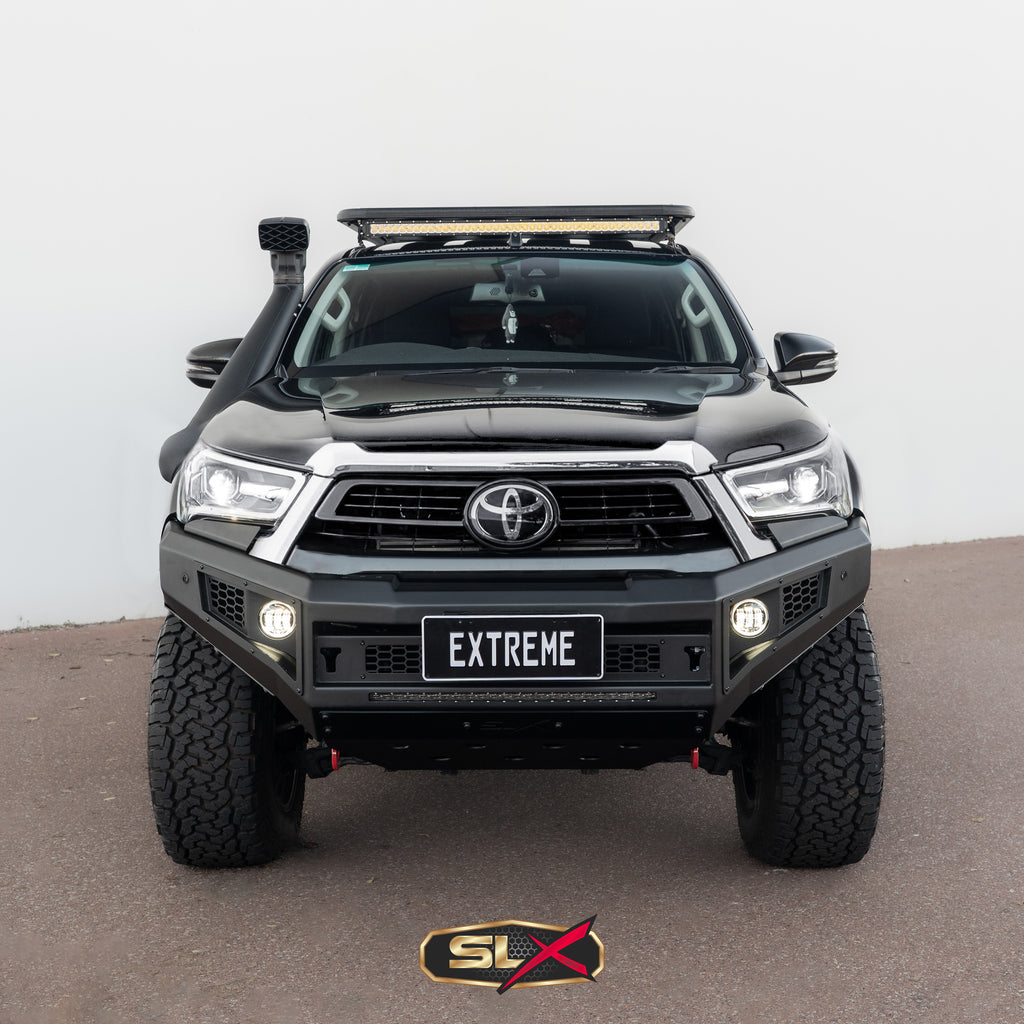

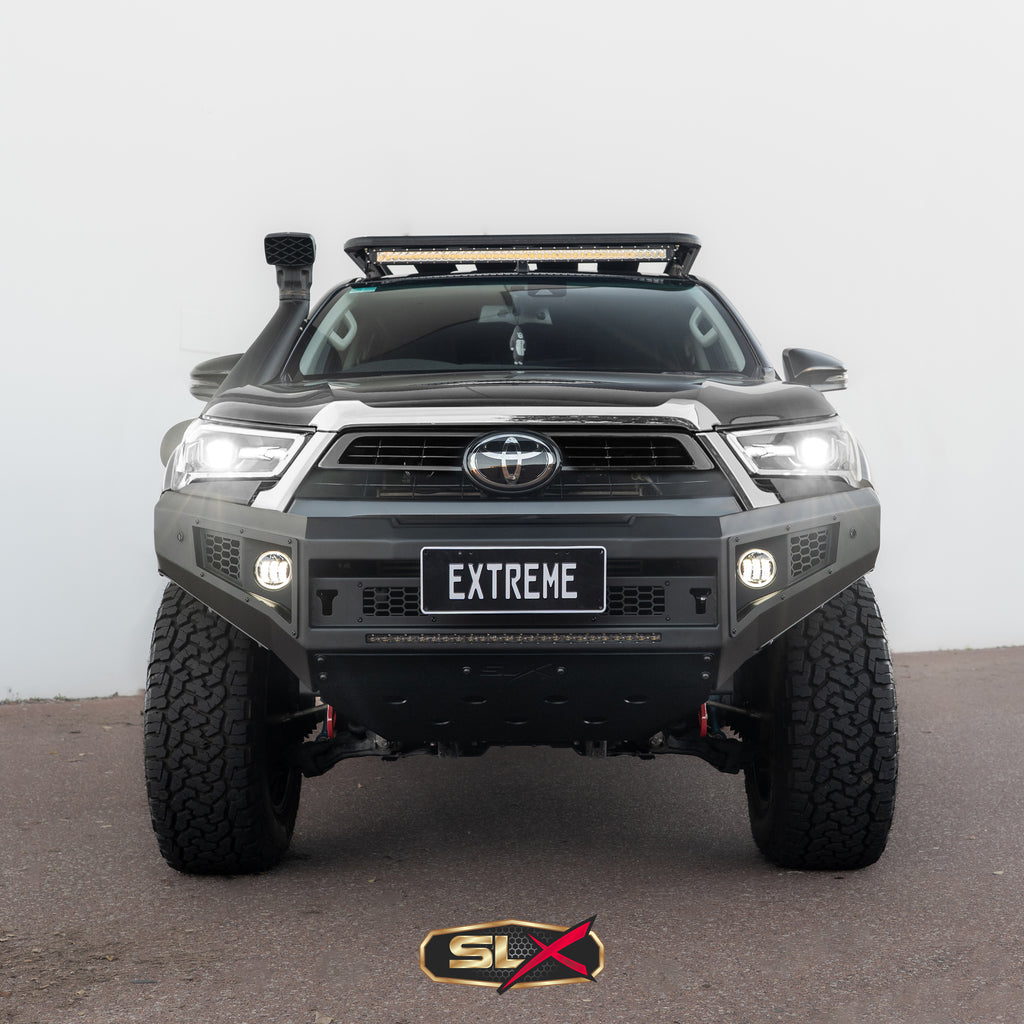

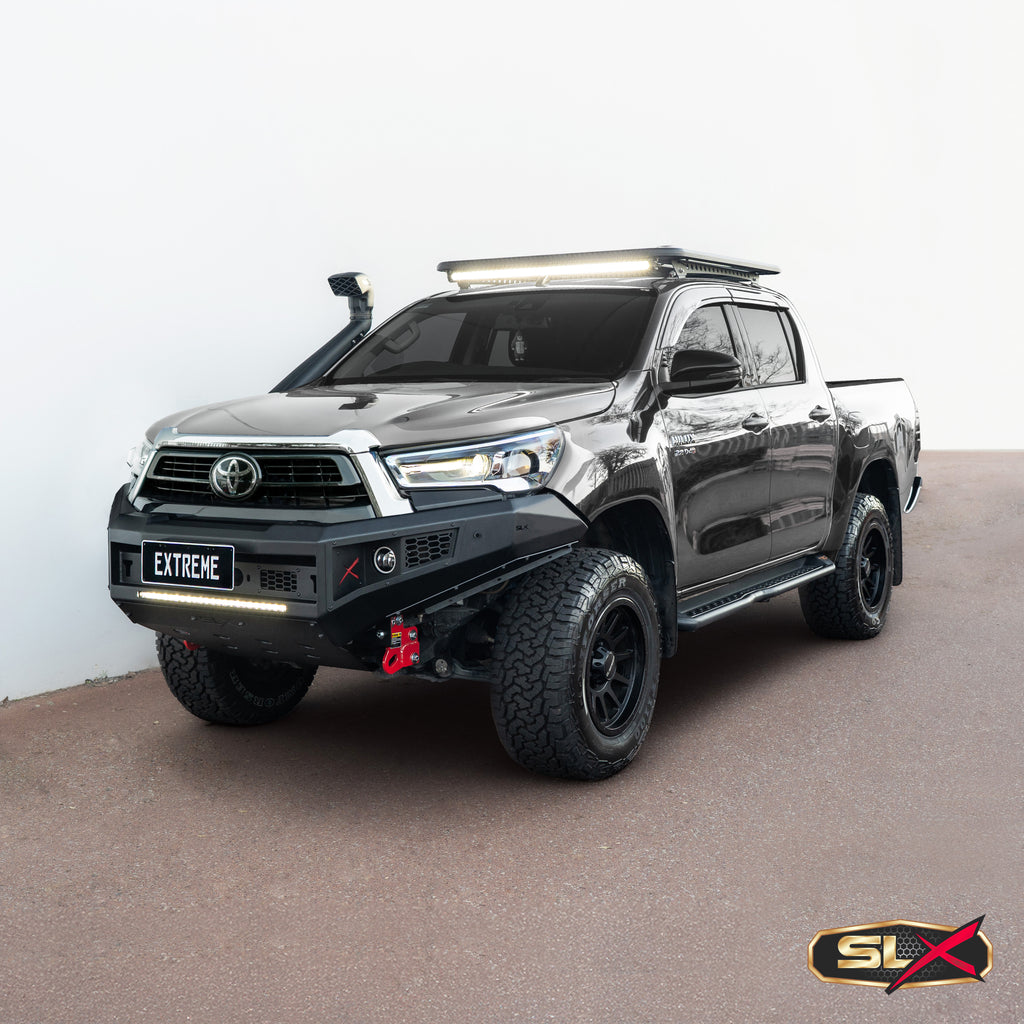

INCLUDES WINCH CRADLE - Can suit upto 12,000lb Low mount Winch.
INCLUDES 4mm BASH PLATE AND LED FOG LIGHTS (DRL )

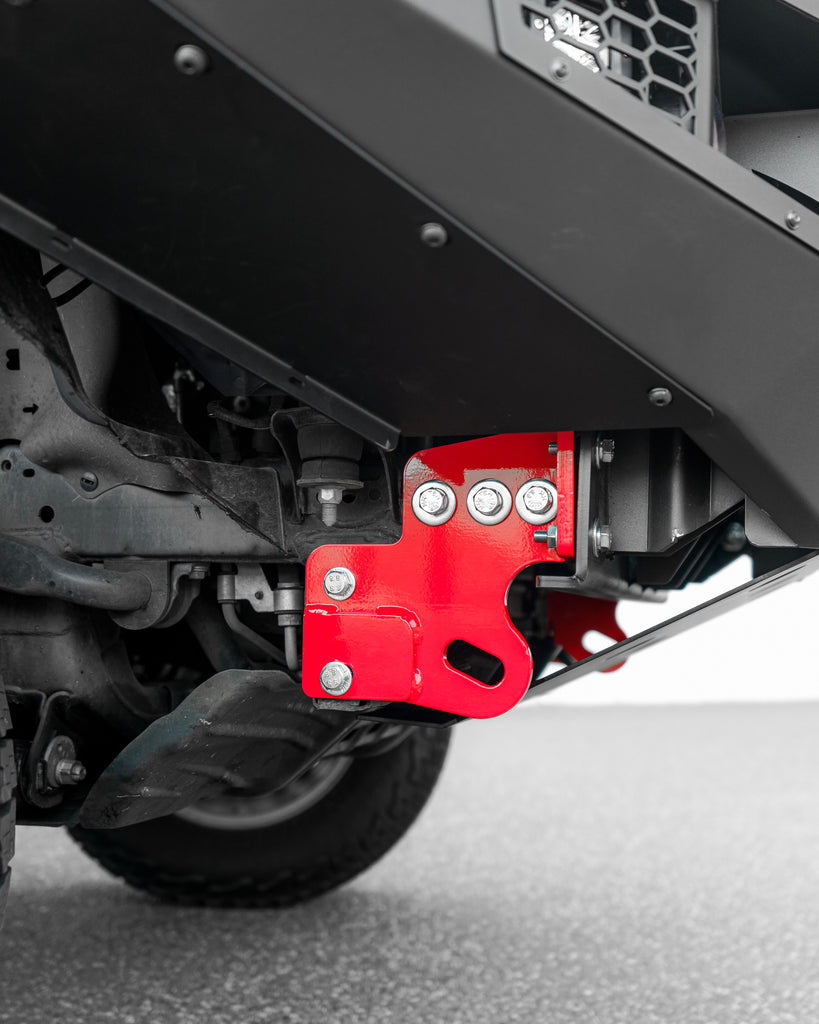

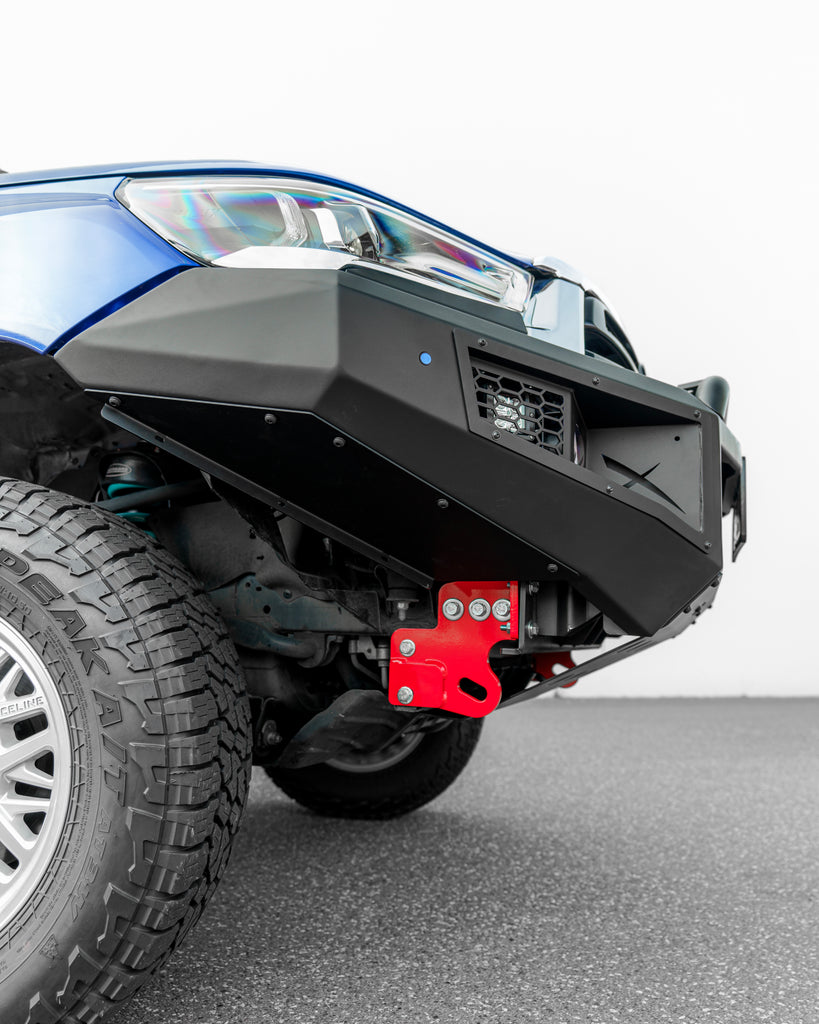

Chassis mounted 5T Recovery points included
4mm bash plate steel

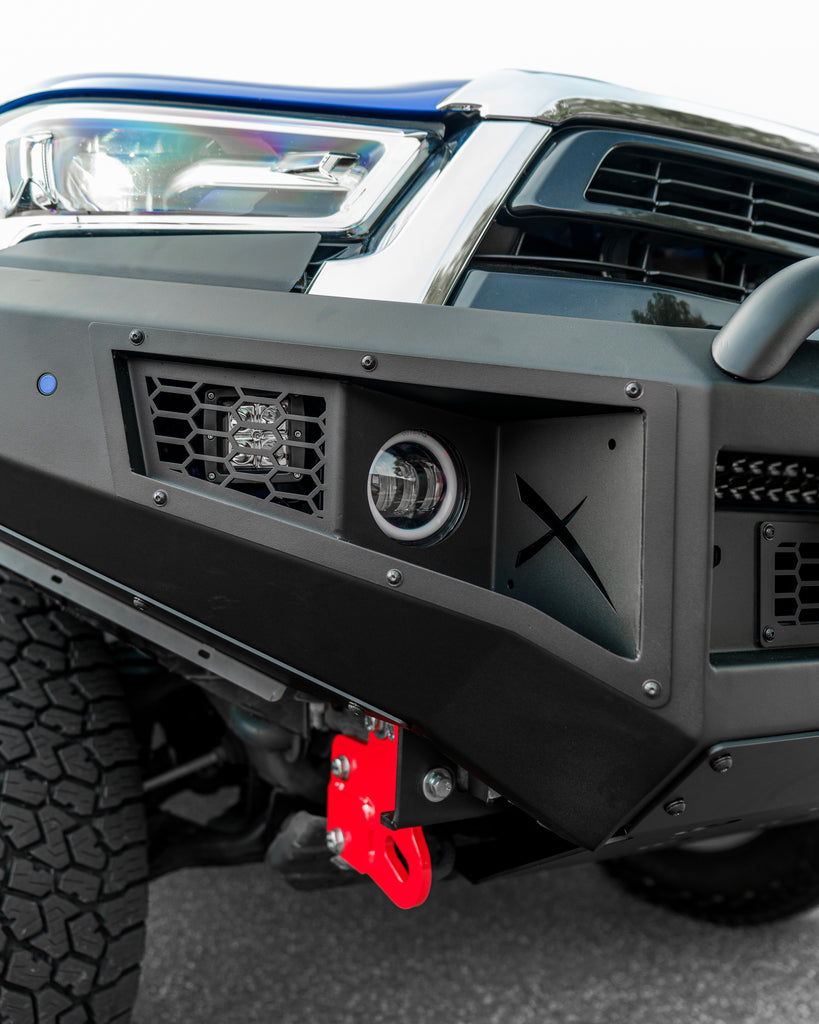

IP67 FOG LIGHT DRL LED
25INCH LED BAR CUTOUT. LED BAR EXTRA
Removable mesh vents centre
Please note : Fog lights come with DRL included, please check with installer if you require DRL connected when fitting.
Made from 8mm steel main winch cradle & 3mm side wings reinforced
ADR69 compliant and airbag compatible Tested by ASE
Meets AS4876.1 2002
Suits most low mount winches upto 12,000LB
Chassis mounted 5T Recovery points included
Additional static recovery points located on the fascia of the bar, not for snatching but with winch and bridal)
Powder coated in texture black or can be colour matched(Additional Cost)
bash plate back to front diff included
Loop does not protrude past the front of the bar
2x Spot light mounting points are located on the loop bar.
It's a complete bumper replacement making install time frame 4Hr
Install Difficulty = Medium
LED BAR INFO
ED POWER OUTPUT: 72 WATT RAW LUMENS: 7416Lm OPERATING VOLTAGE: 10-30V DC CURRENT DRAW: 3.9a @ 13.6v LED CHIP: 24 x 3w CREE XBD LED COLOUR TEMPERATURE: 6000k MATERIAL: Die Cast Aluminium Housing LENS: PC Lens MOUNTING BRACKET: Aluminium FASTENERS: Stainless Steel BEAM TYPE: Flood LIFE SPAN: 50000 Hours WEIGHT: 1kg WATERPROOF RATE: IP67
Does not suit SR single cab work mate(revo 2015-2017 bar required for that car)

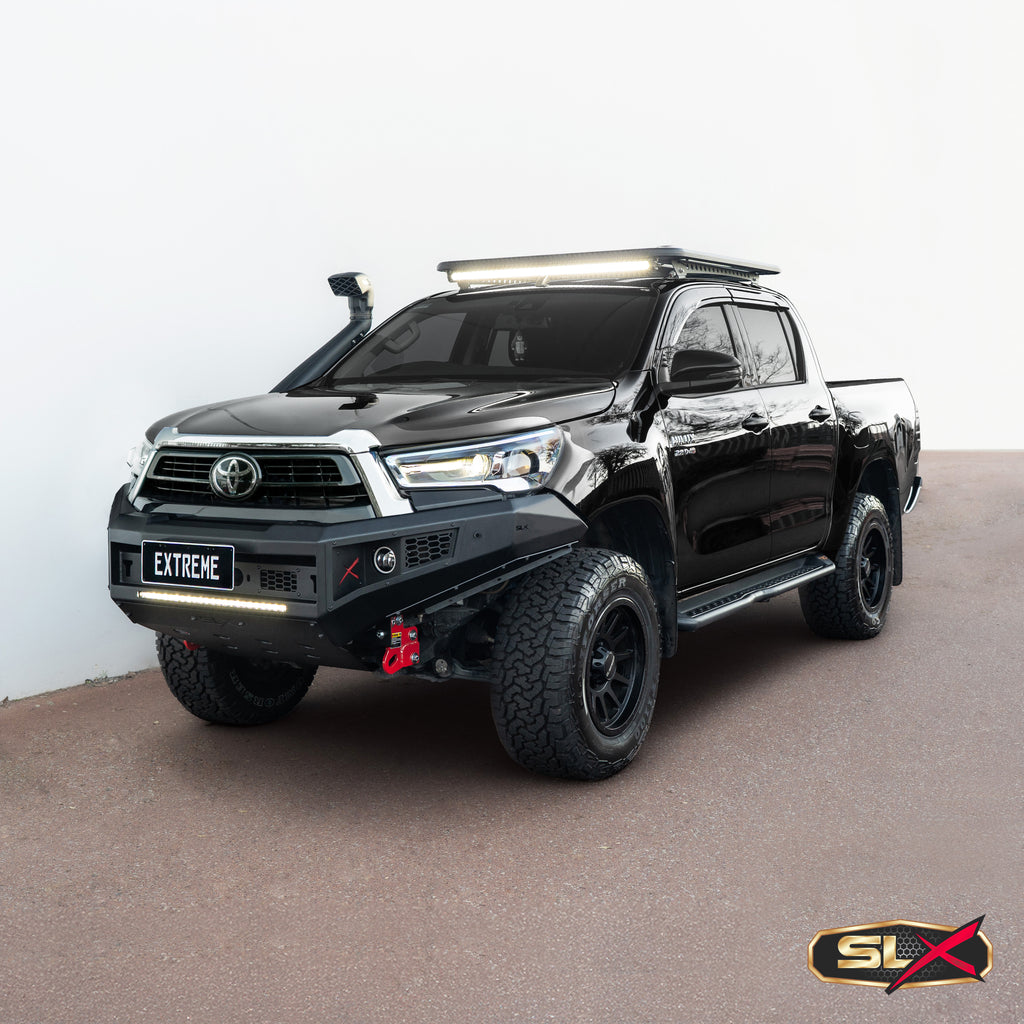

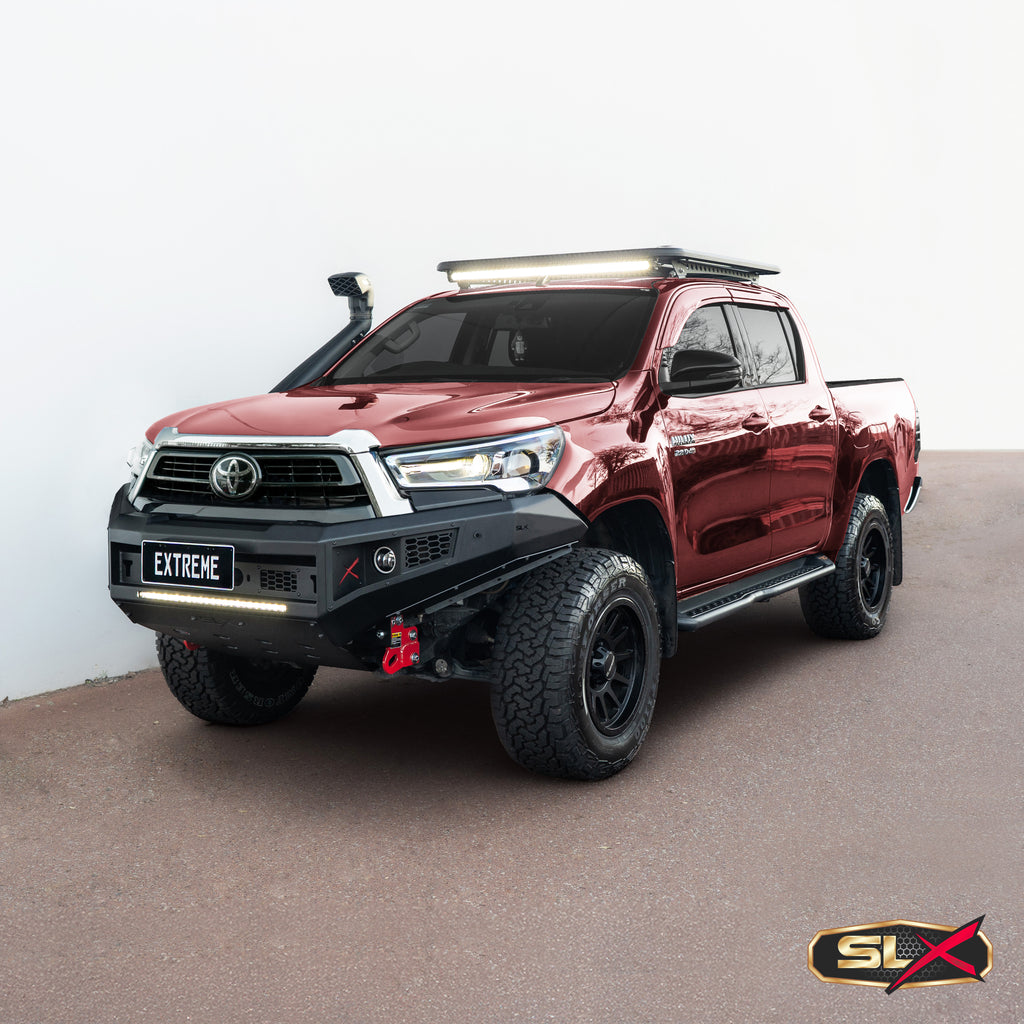

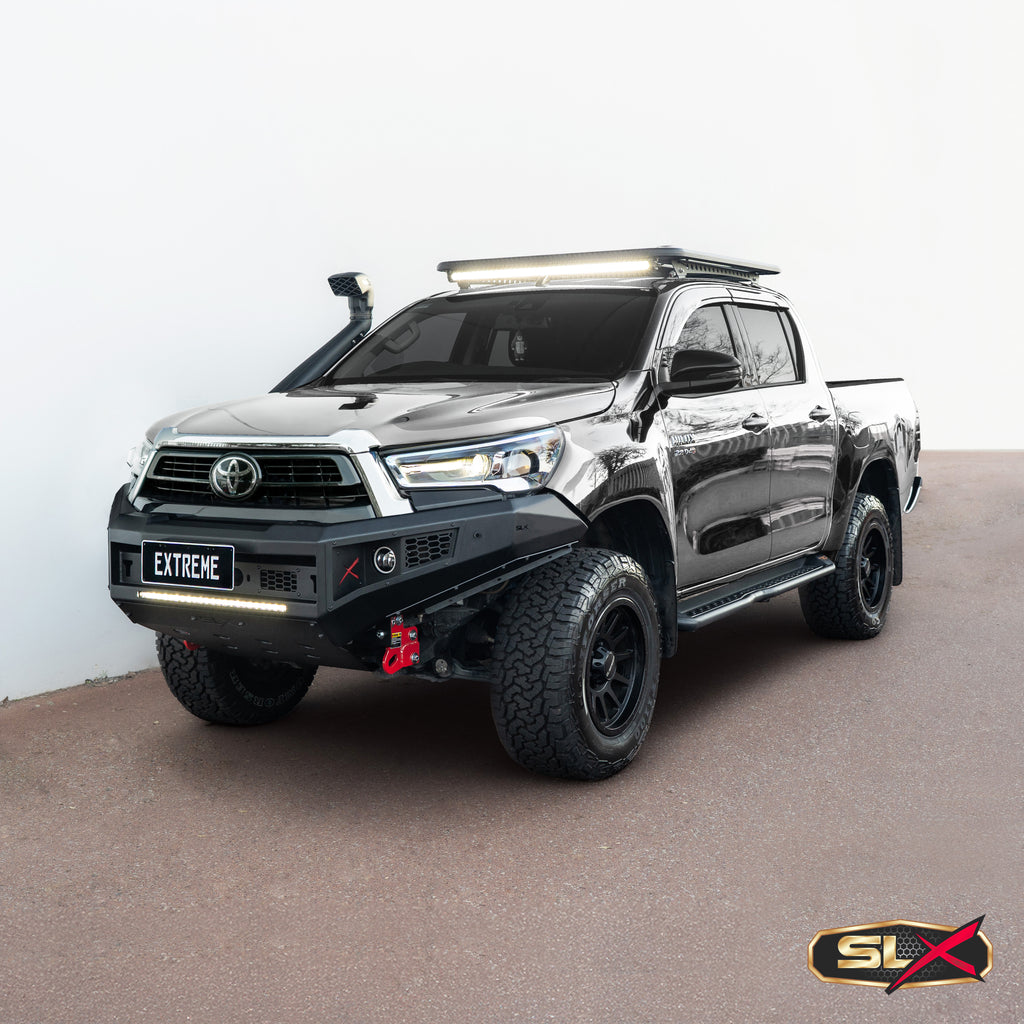

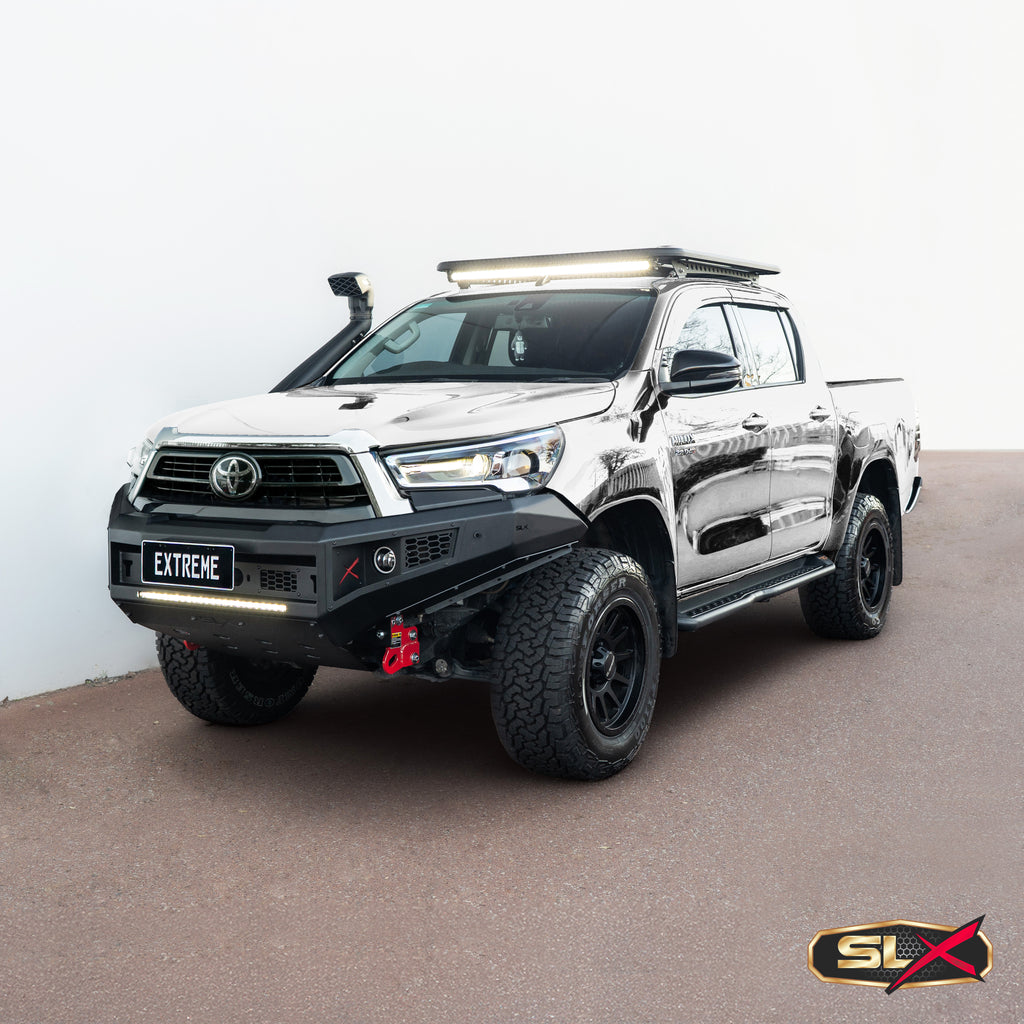

COLOUR CODING- The standard colour coding is as follows.
1) Main bullbar & Loop colour matched to 4WD.
2) Centre winch section Black Hammertone for durability.
3) Fog Lights - Black Hammertone for durability.
4) Bash Plate - Black Hammertone for durability.
