Brake in Moter Side, very quiet and won’t heat up the drum.
Clutch Lever Designed for easy access and installation.
Shackle Thimble (optional Extra)

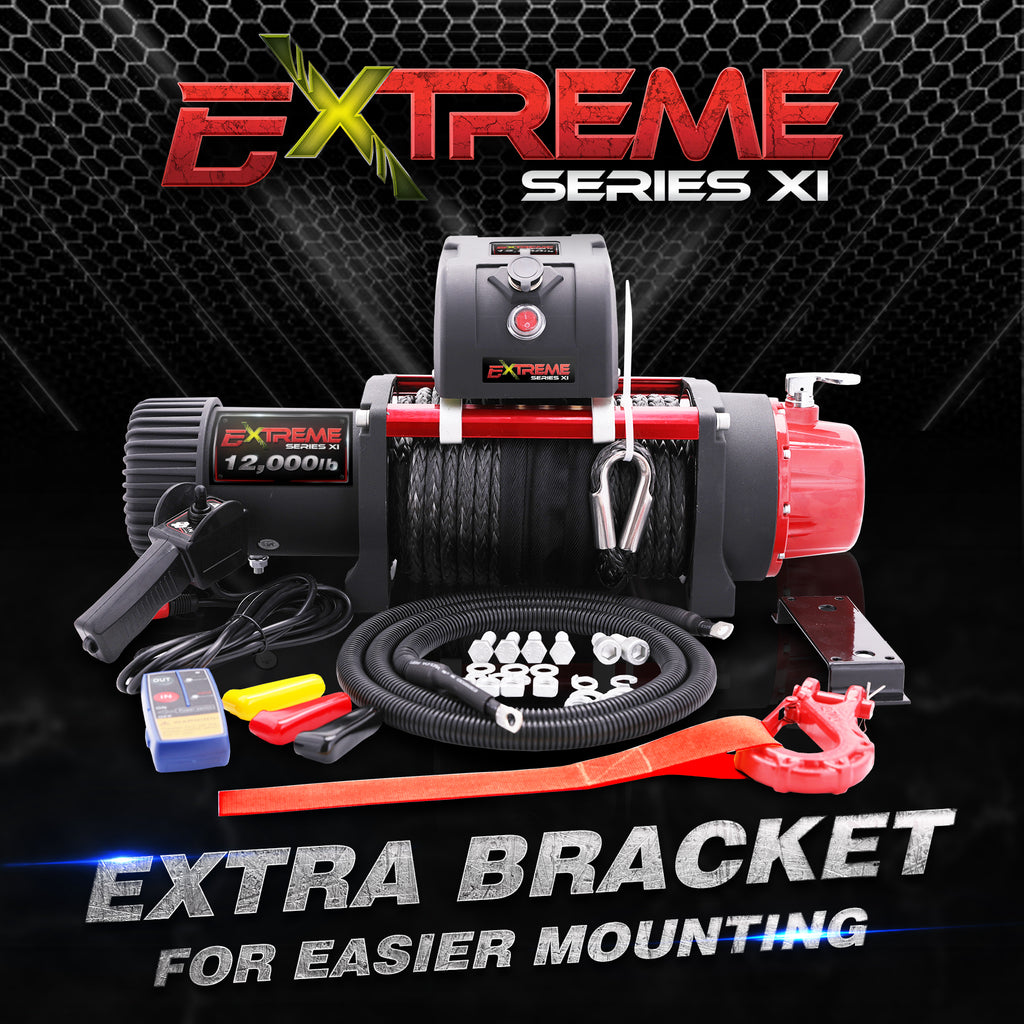

Package includes:
12,000LB Winch with Dyneema Winch Rope
500A Solenoid Pack with 25mm2 cables
3.5m Handheld Remote
Wireless Remote
Aluminium Hawse Fairlead
Mounting Bolts

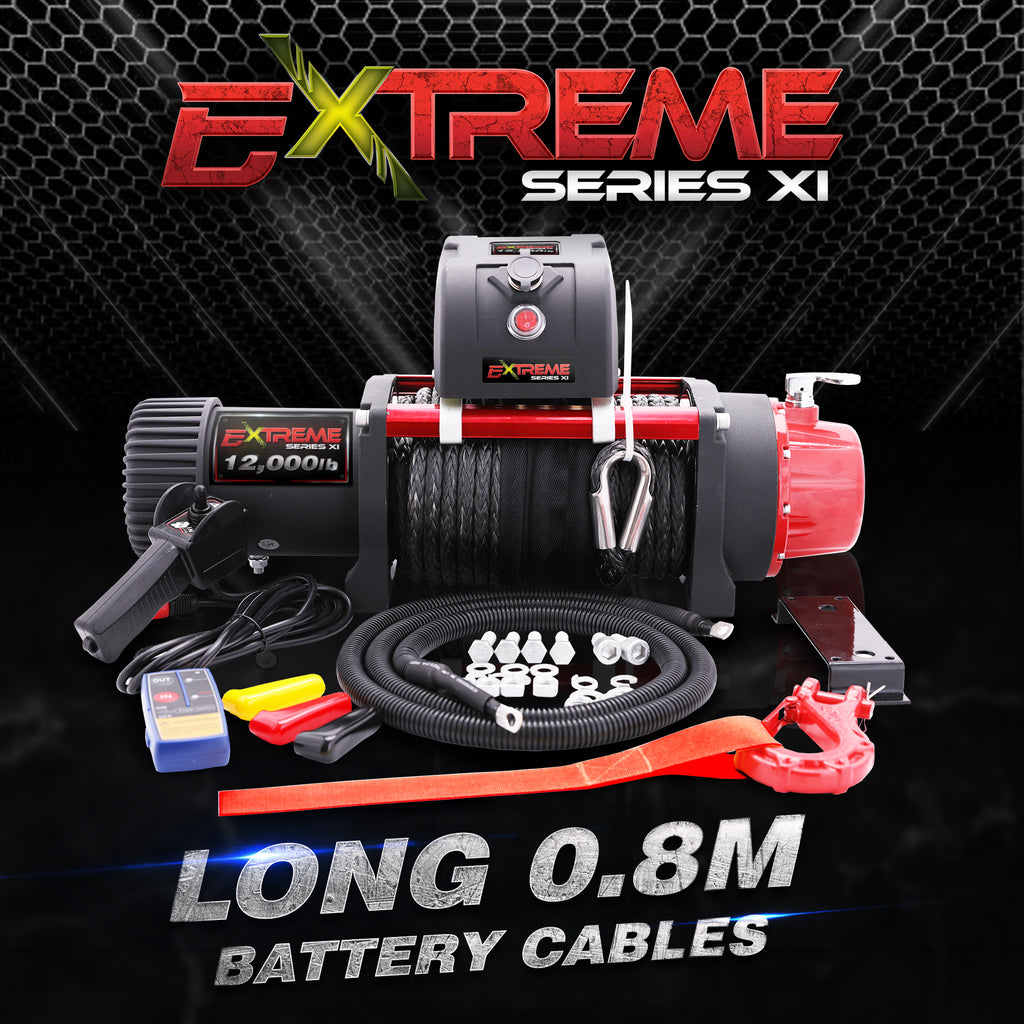

UPGRADED Cables 0.8m Length and sleeved for protection. The extended cable length allows you to remotely locate the control box either side of the winch, for bull bars with limited mounted space.

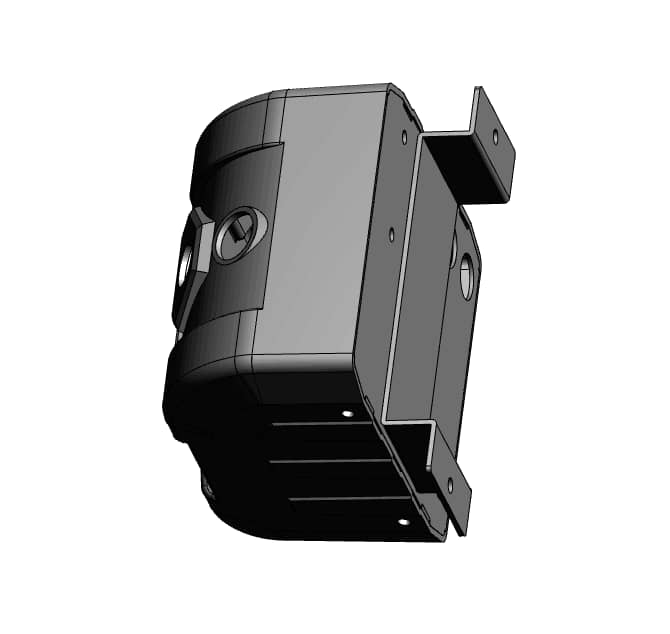

As well as the standard control mount on top of the winch, We have provided a EXTRA bracket designed to help locate control box in new style bull bars.
Features:
Free spooling clutch
Winch power in and out via remote
Automatic braking action.

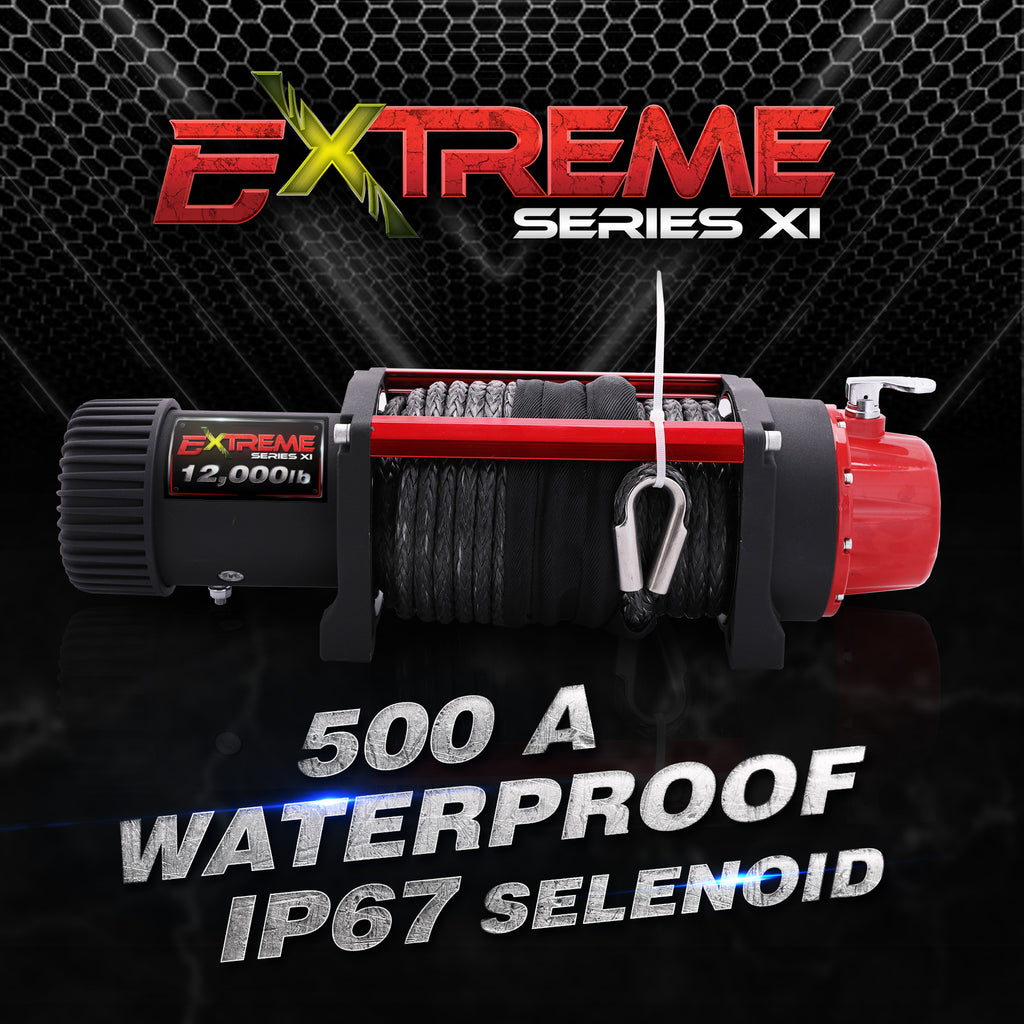

100% Waterproof competition grade Solenoids

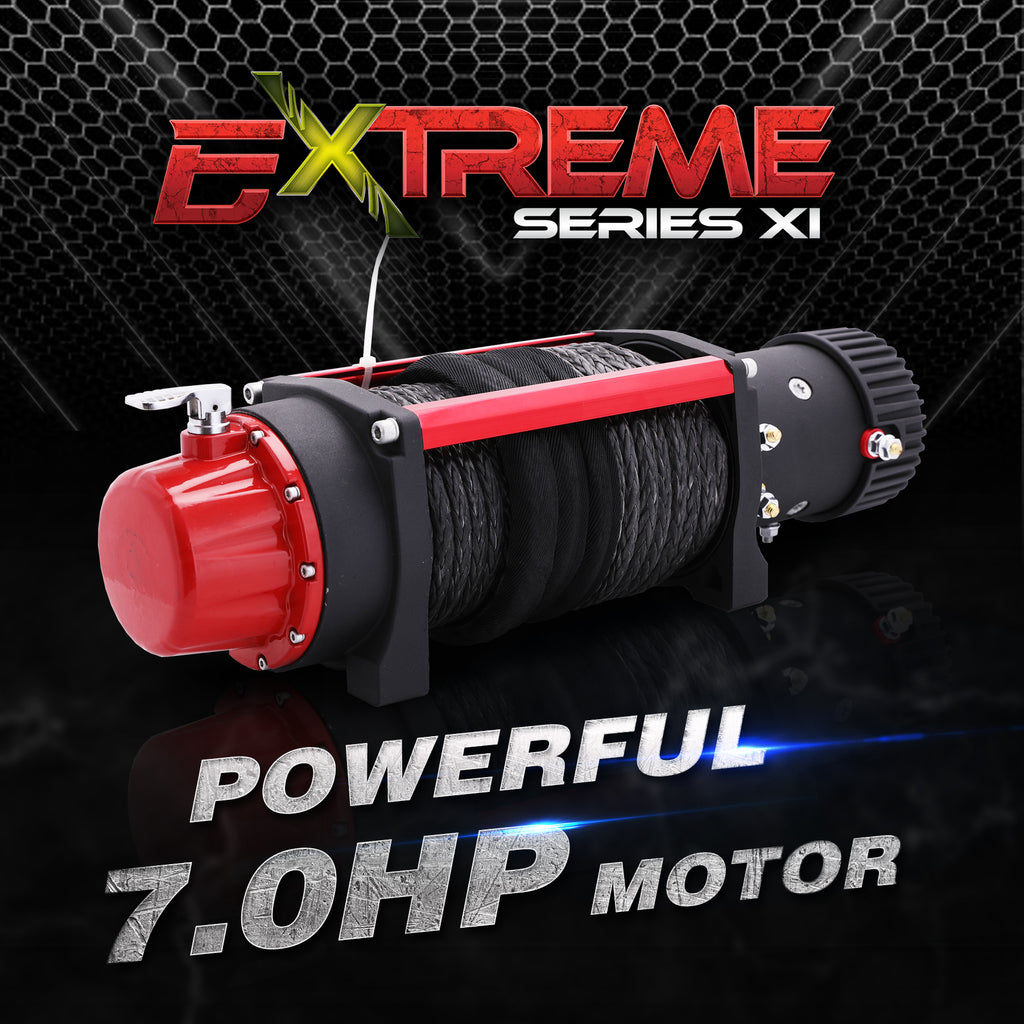

High output series wound motor
Heavy duty robust construction

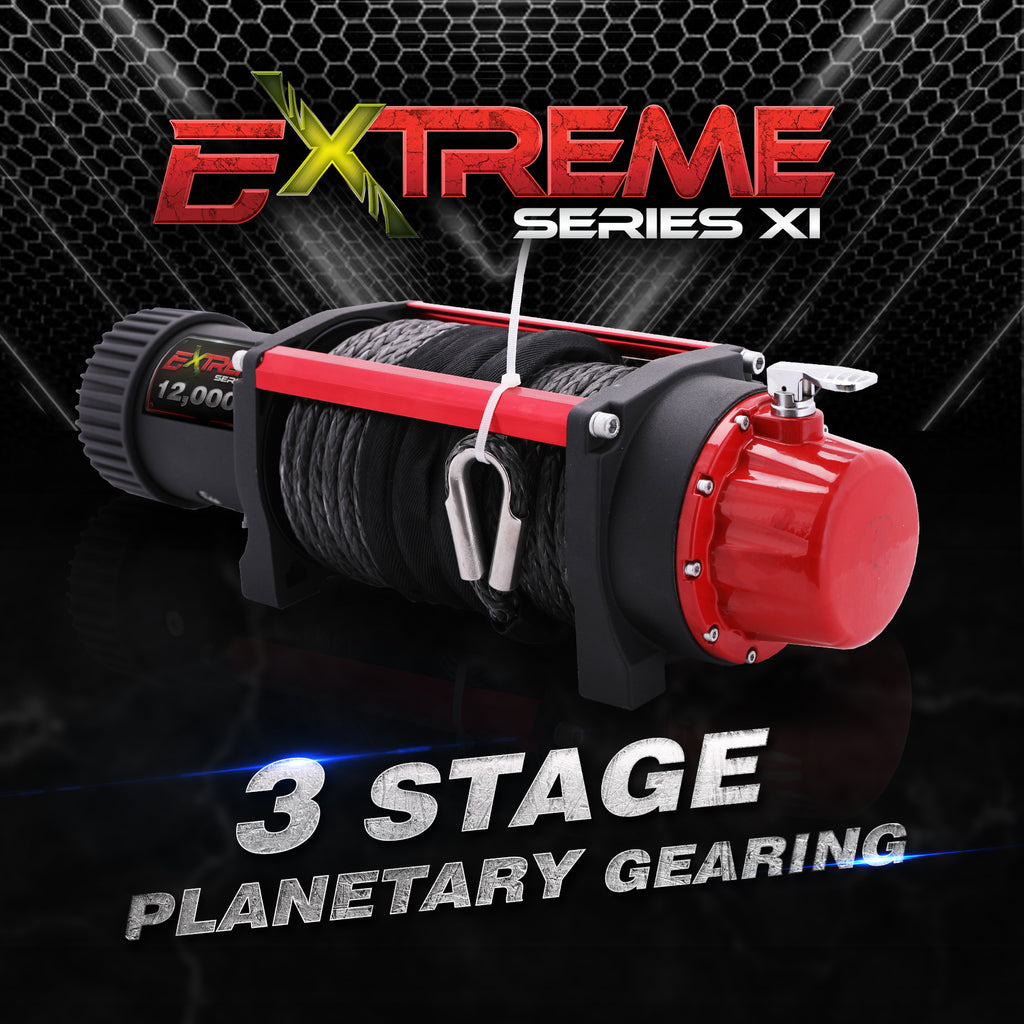

3 stage planetary gearing
EXTREME SLX WINCH 12000LB 12V with Dyneema
DESIGNED TO BE INSTALLED WITH THE EXTREME SERIES BULLBAR. CLUTCH COMES PRE-ROTATED & SPECIAL BRACKETS FOR MOUNTING WITHIN SLIM LINE BULLBARS.

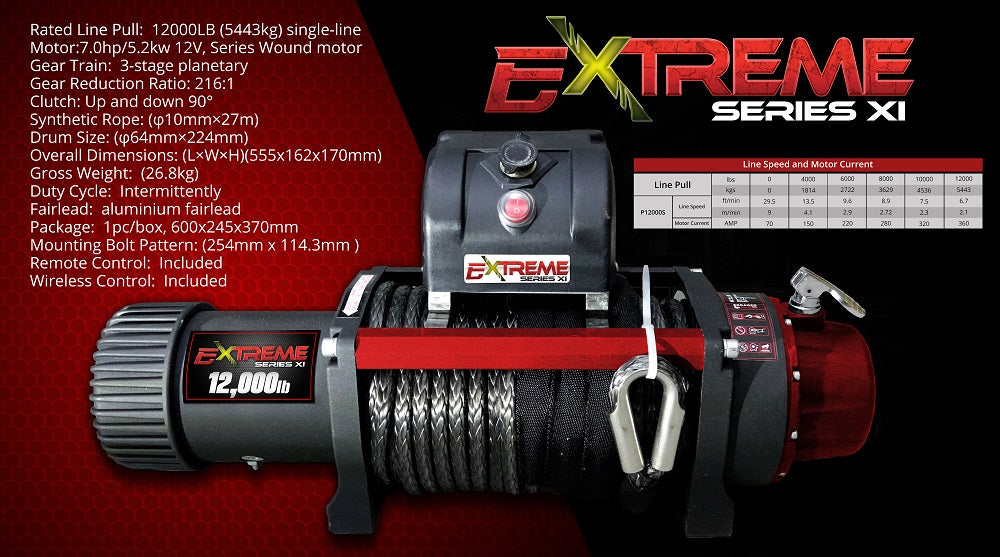

Rated Line Pull: 12000LB(5443kg) single-line Motor:7.0hp/5.2kw 12V, Series Wound motor Gear Train: 3-stage planetary Gear Reduction Ratio: 216:1 Clutch: Up and down 90° Synthetic Rope: φ3/8”×92” (φ9.5mm×27m) Drum Size: φ2.51”×8.82”(φ64mm×224mm) Overall Dimensions: (L×W×H)21.1”×6.4”×6.7”(555x162x170mm) Gross Weight: 59lbs(26.8kg) Duty Cycle: Intermittently Fairlead: aluminium fairlead Package: 1pc/box, 600x245x370mm Mounting Bolt Pattern: 10”x4.5”(254mm x 114.3mm ) Remote Control: Included
Specifications:

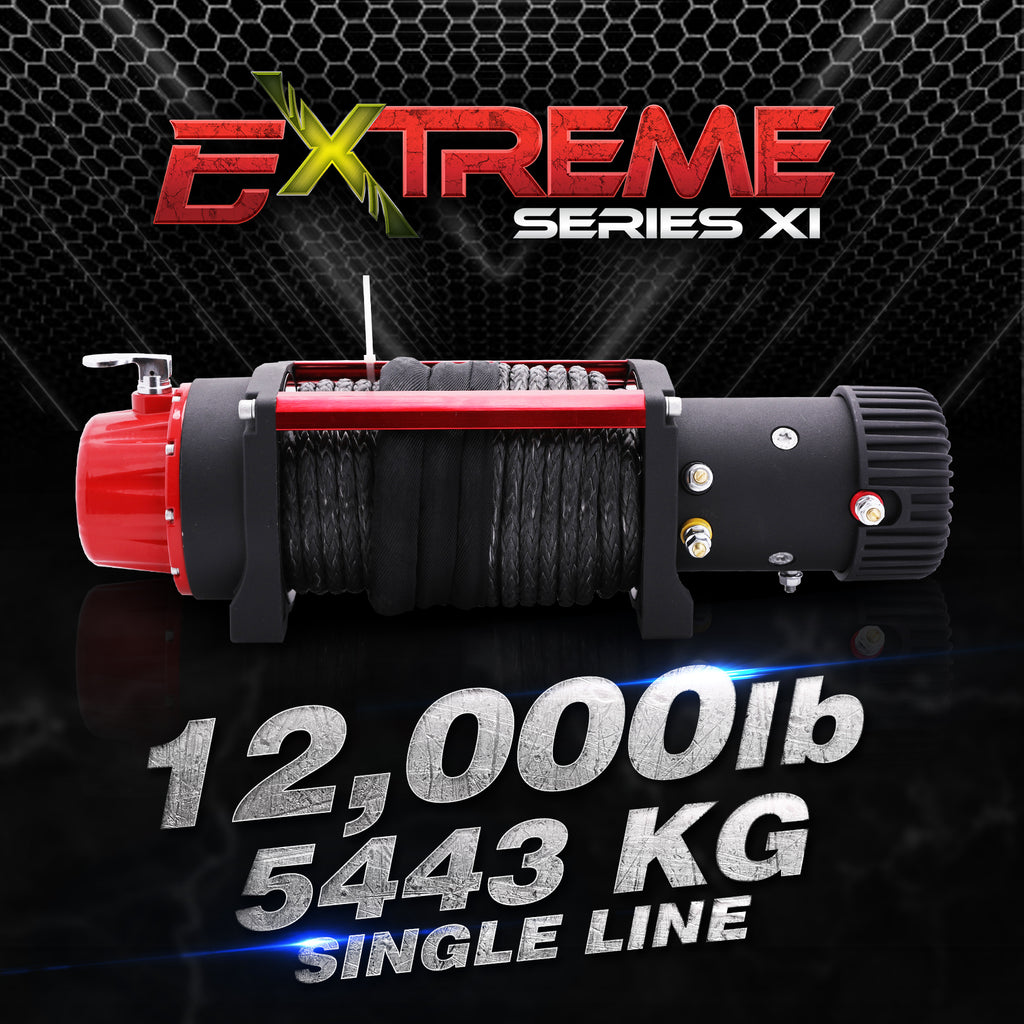

Rated Line Pull 12,000lb (5443kg)

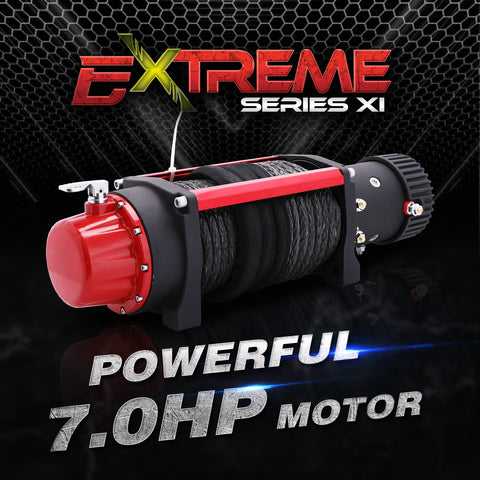

Motor – Series Wound (12V) 5.2kW/7.0hp
Gear Reduction Ratio (12V) 216:1
Dyneema Winch Rope 10mm x 24M
Overall Dimensions 555mm x 162mm x 170mm
Mounting Bolt Pattern 254mm x 114.3mm
