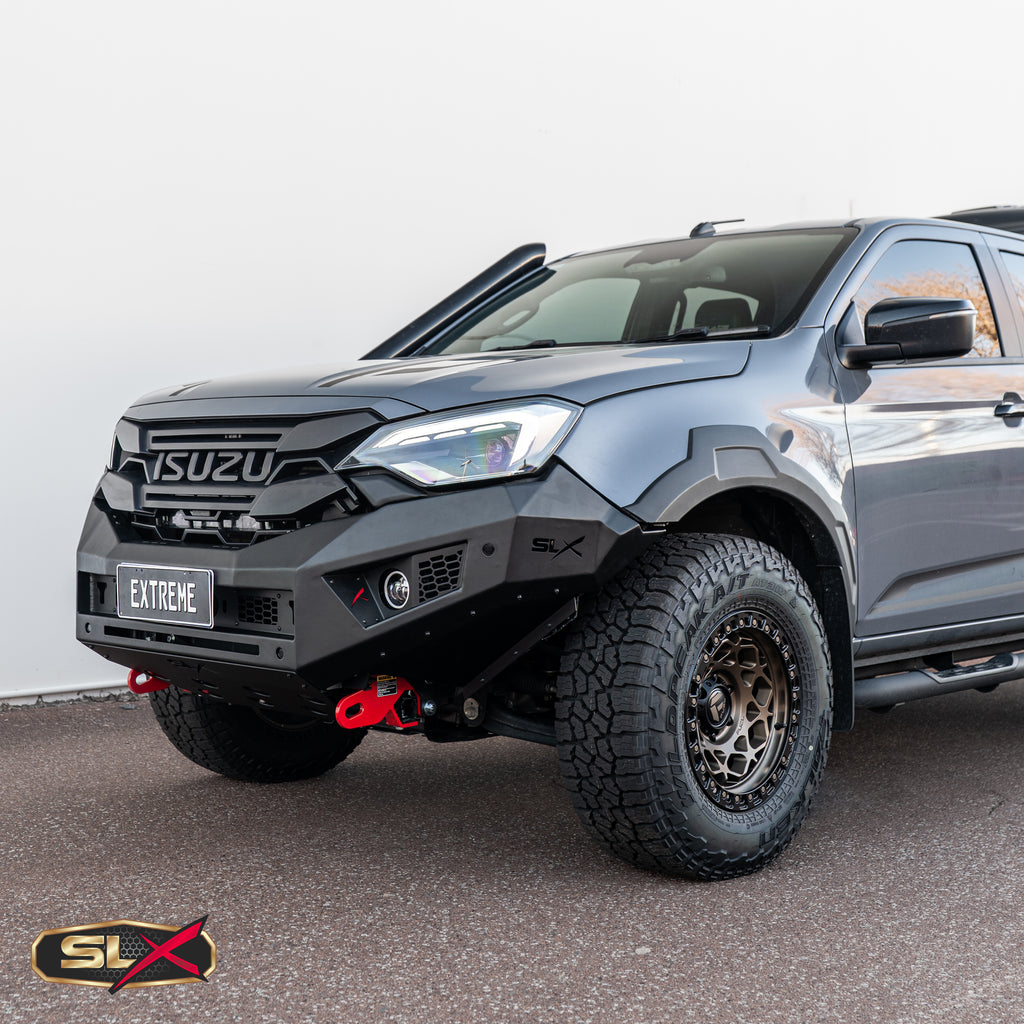

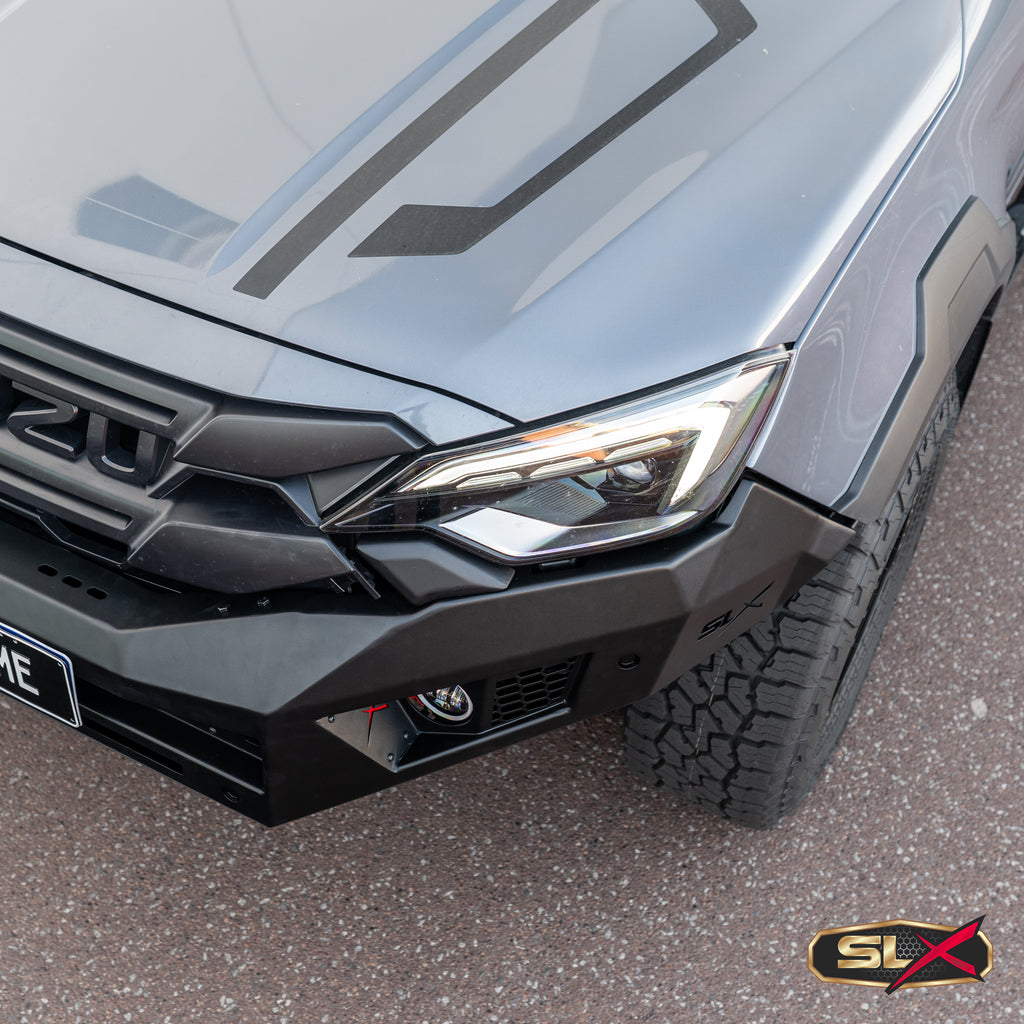

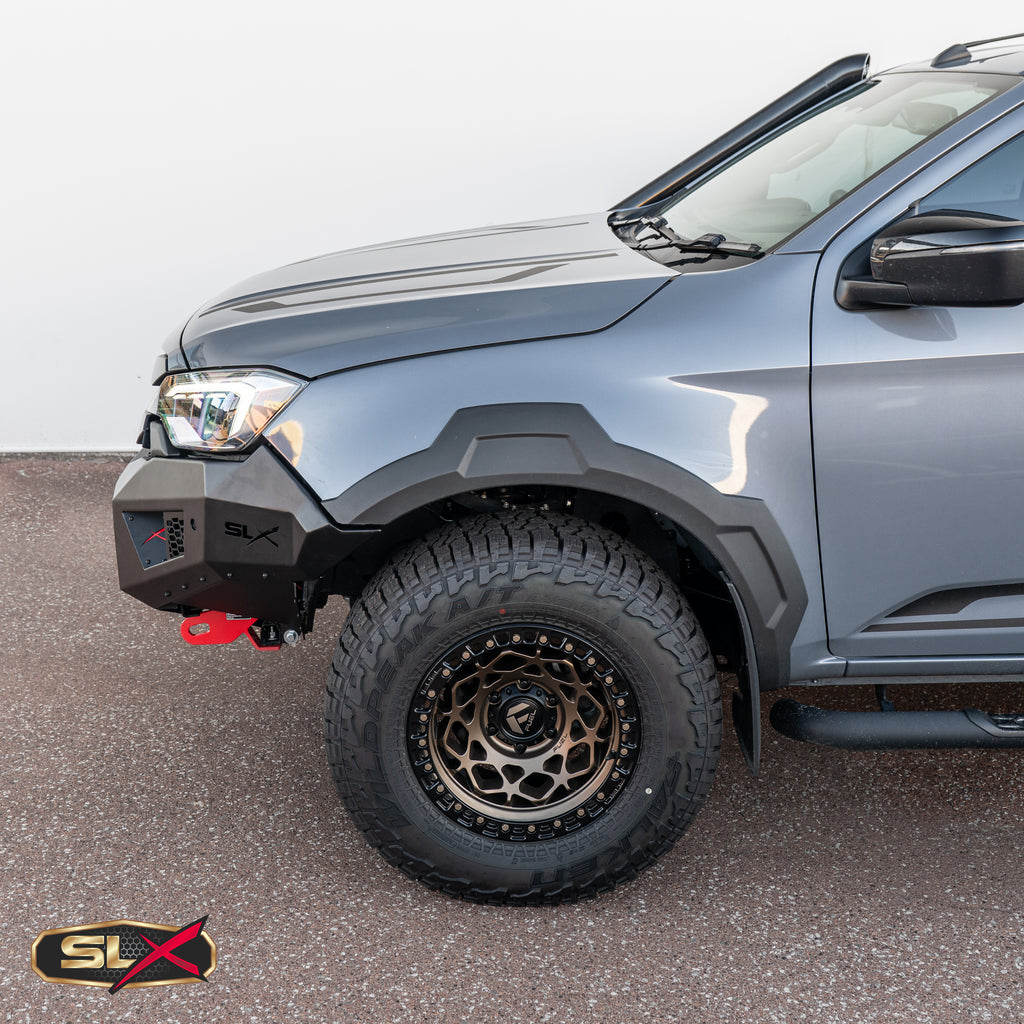

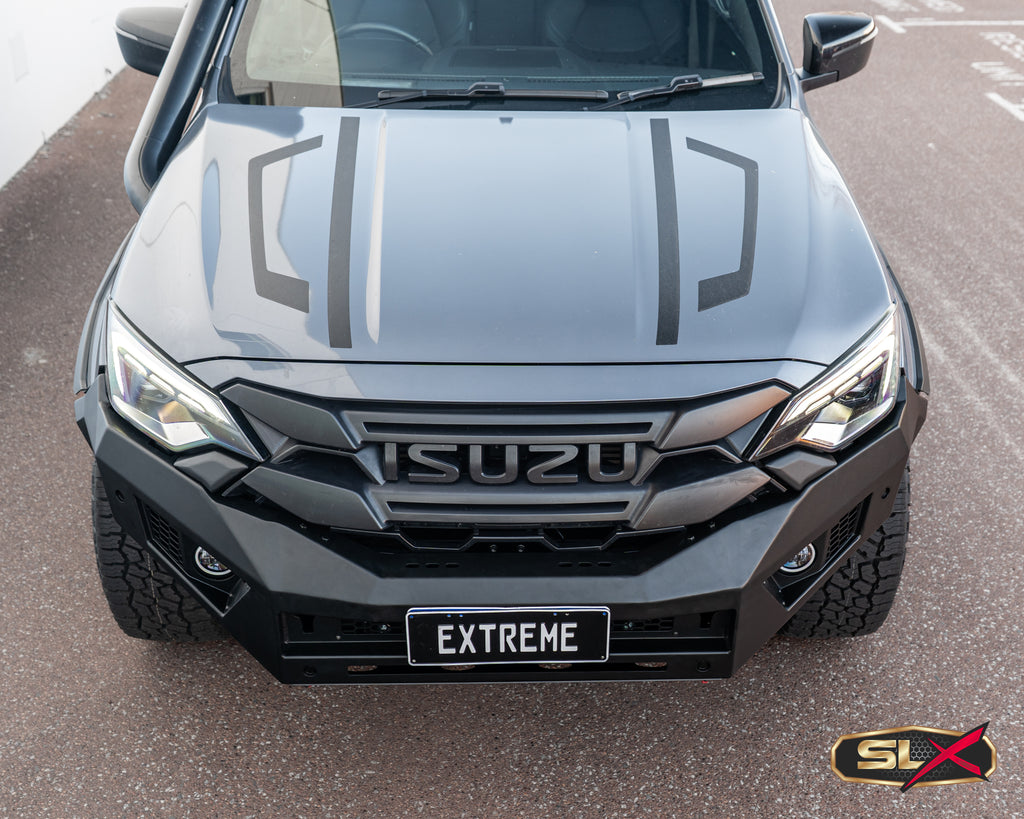

EXTREME SERIES BULLBAR Suits Isuzu Dmax BLADE 03/2024 on

INCLUDES BASH PLATE AND LED FOG LIGHTS (DRL )

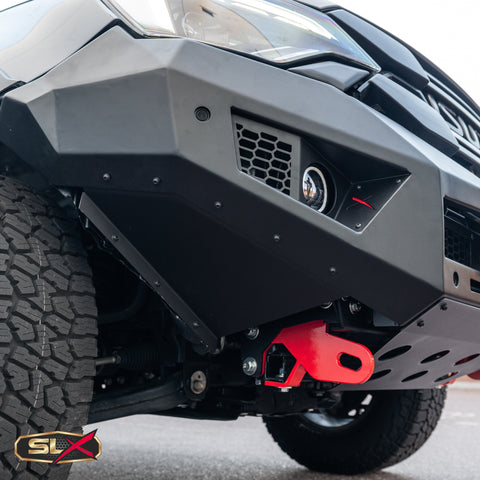

1. Chassis mounted 4.5T Recovery points included

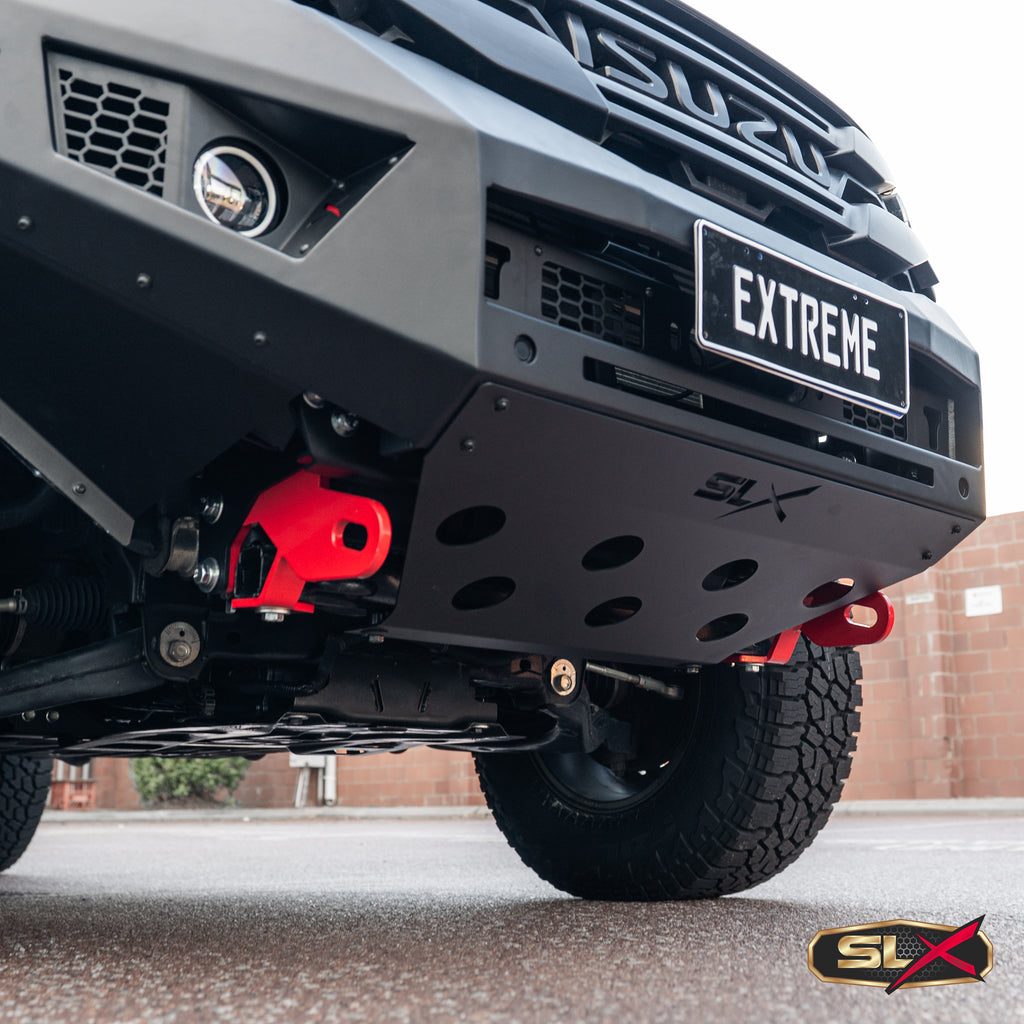

2. Additional bash plate suits BLADE made in Australia
3. Additional flare end covers for BLADE flares made in Australia
4. 4mm bash plate steel
5. Winch Cradle
6. Under wing Side bash plates

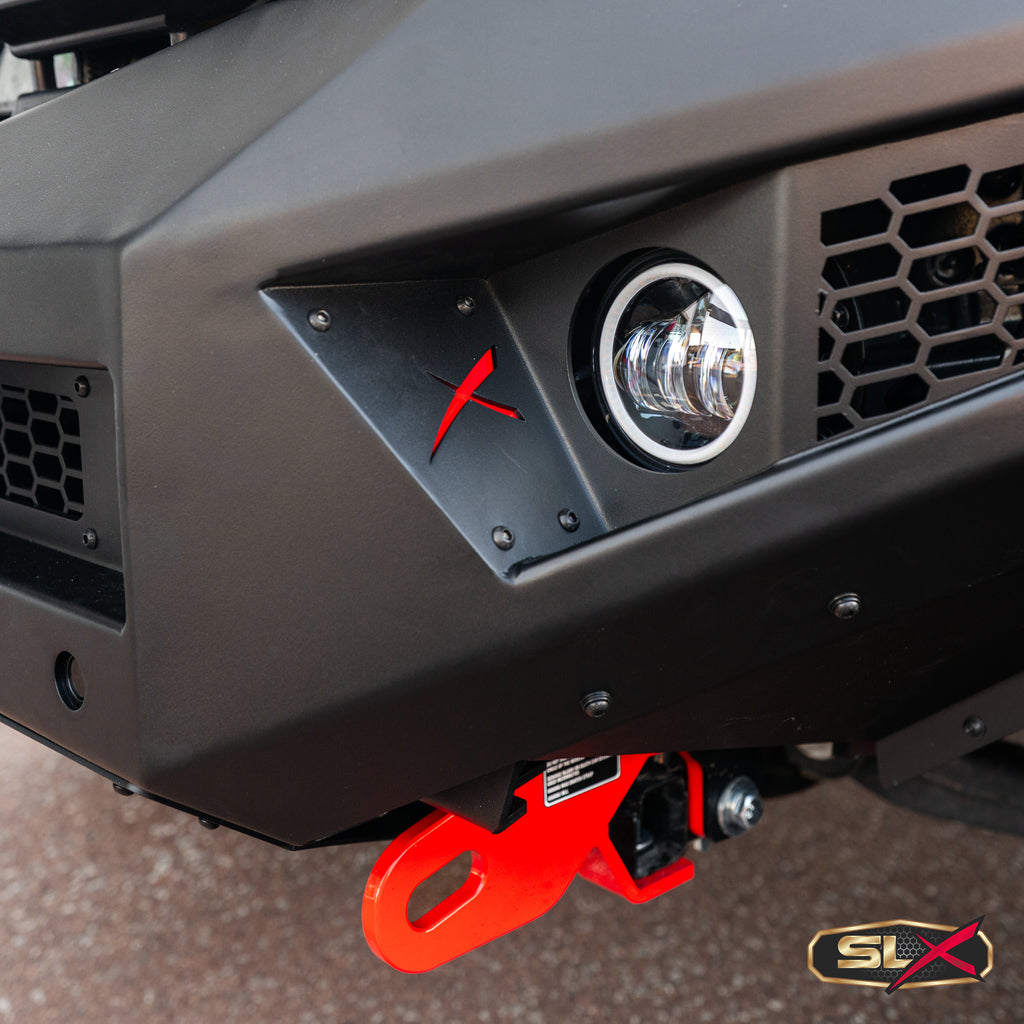

7. IP67 FOG LIGHT & intergrated indicator LED

8. 25Inch LED bar cutout under number plate.  - See Lighting Category

9. Removable mesh vents centre
10. Removable loop with 21.5inch LED bar provision  .
    The price for led bar is our SLX 120W - See Lighting Category for further details.
    also suits Stedi ST3K 21.5inch

Key Advantages

1) Full Bumper Replacement
2) 1 piece fully welded design.
3) Low Profile 60mm From grill to front of bar.
4) Extremely Low Weight

Complies with Australian standards such as

 AS4876.1 2002

Section 5 to ADR 92/00 External projections

Clause 6.5 to ADR 43/04 Vehicle configuration and dimensions

Section 5 of ADR 93/00 Forward Field of View

Clause 6.6 to ADR 43/04 Vehicle configuration and dimensions

COLOUR CODING-  The standard colour coding is as follows.

1) Main bullbar & Loop colour matched to 4WD.

2) Centre winch section Black Hammertone for durability.

3) Fog Lights - Black Hammertone for durability.

4) Bash Plate - Black Hammertone for durability.

Complete bar & Winch Cradle: 46kgs

Bash Plates : 10kg
Recovery Points: 7kgs
Total Weight of product (with recovery points): 63kgs
Removal of misc parts when fitting: 20kgs
Total weight added to vehicle: 43kgs

Optional LED bar Bracket 4kg
